Low Energy
Doors equipped with low energy operators can be opened manually or through the use of a "knowing act" device (i.e., push button, remote, or wave to open).
SS8200 (SimpleSwing)
The Record SS8200 is a heavy duty low energy operator that can be specified for almost any interior or exterior application.
With built-in programmable controls and interfaces for electric strikes—combined with up to a 3-year warranty—the SS8200 simply out performs the competition.
Features
- Can be used for interior or exterior applications
- SimpleLynk communications display allows the installer to properly set-up and program the door
- Simple to install and program
- Available for single, pairs or double egress doors
- Available in clear or dark bronze anodized finishes
- Push to start applications eliminate the need for additional activation accessories and complex wiring
- Latch assist function assures closing in areas with heavy stack conditions
- Interfaces with electric strikes without additional relays or delays
- Breakaway adapter to prevent operator or arm damage when abused
- Various arm options

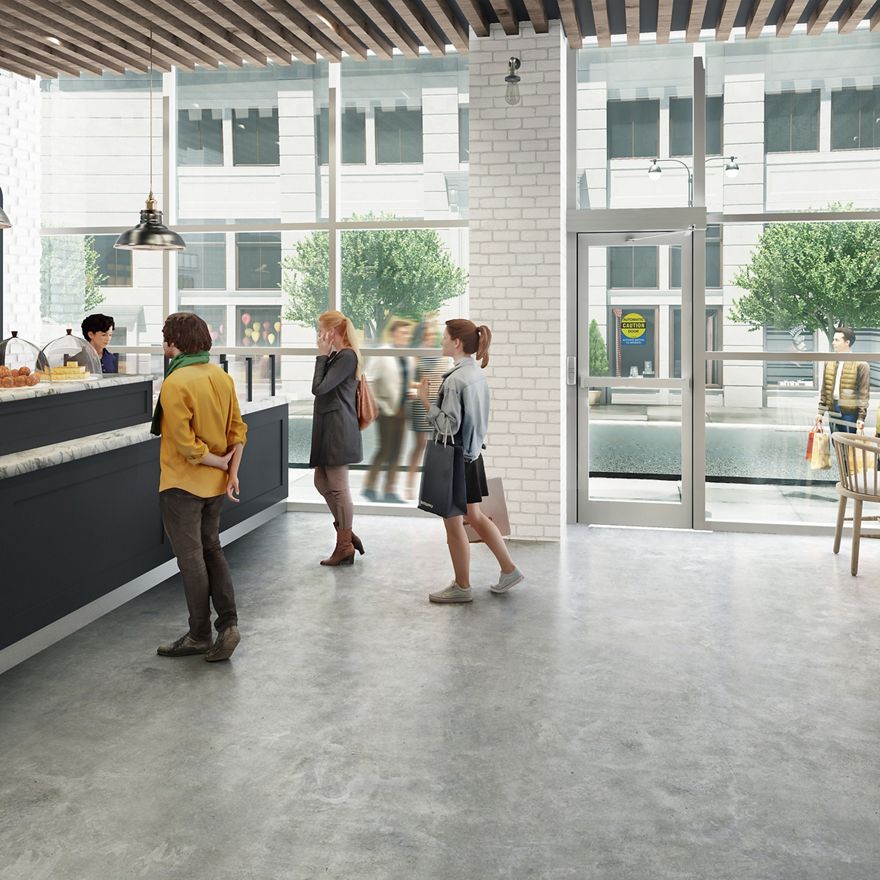

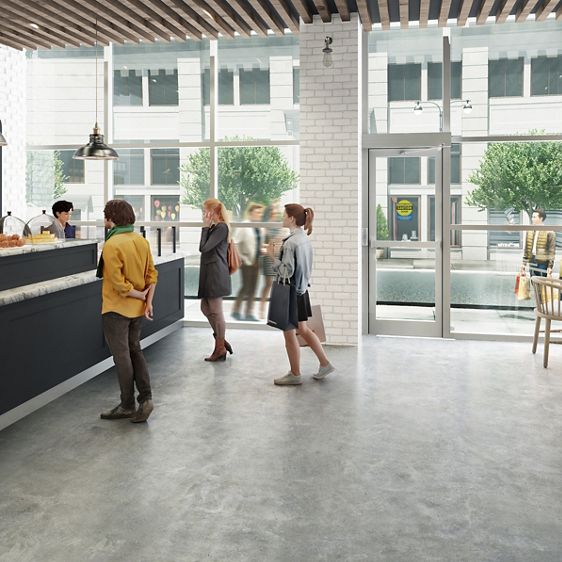

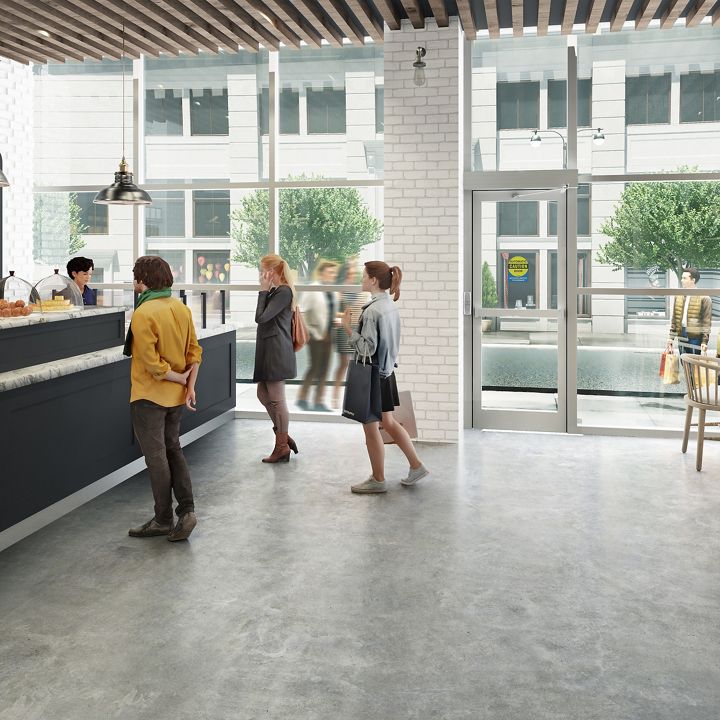

The SS8200 can be used on interior or exterior applications.

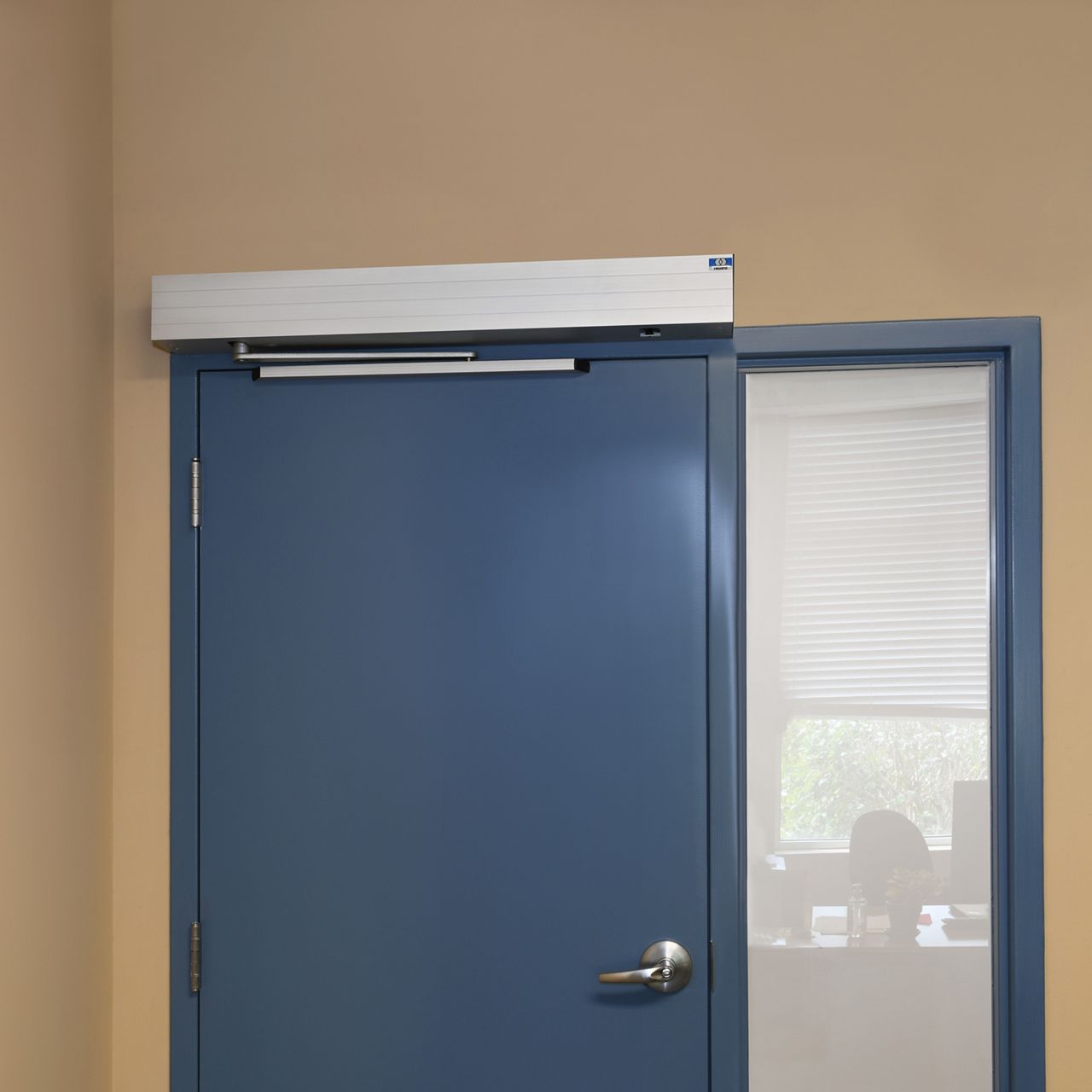

- The SS8200 can be used on interior or exterior applications.
- The SS8200 is easy to install and program.

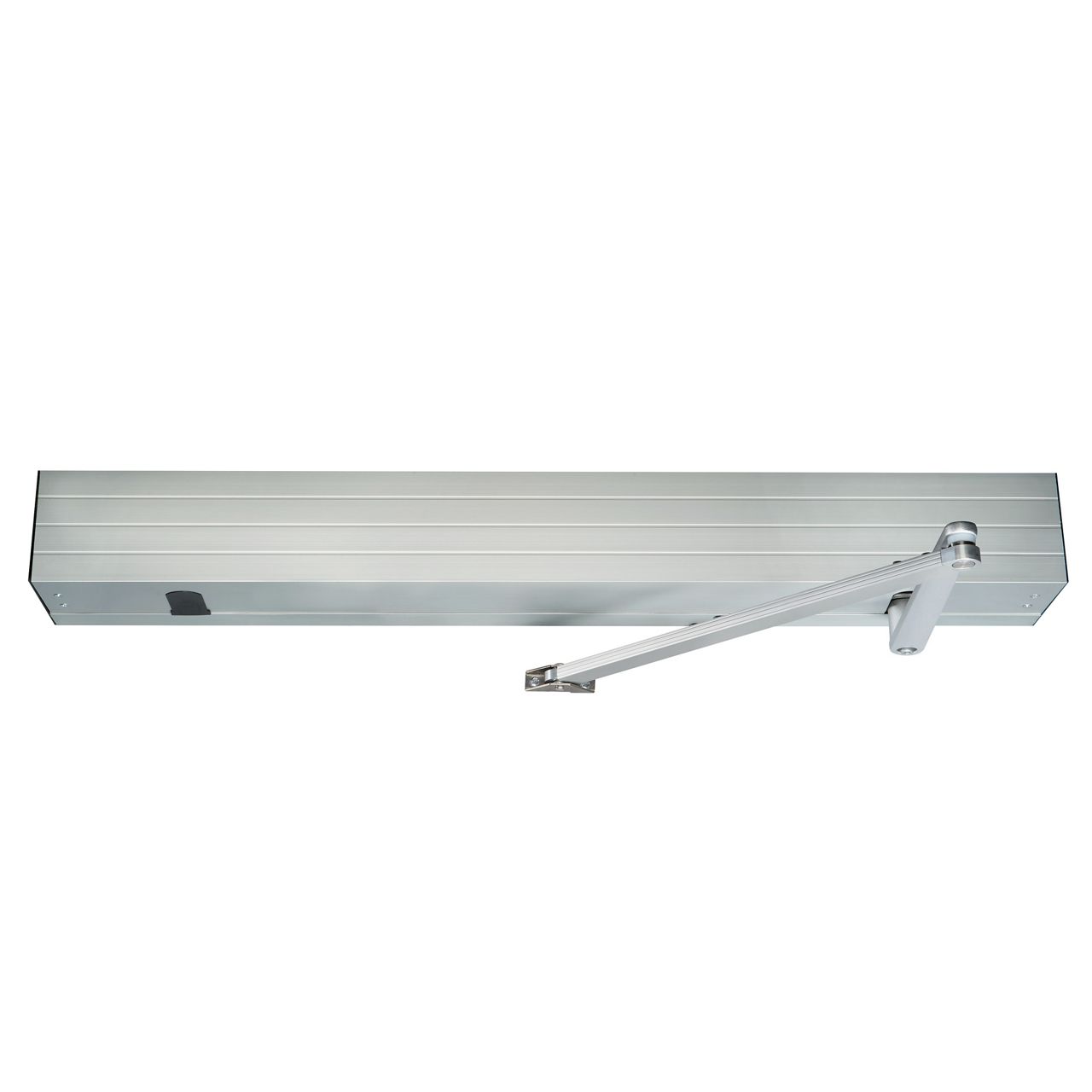

- SS8200 in clear with the standard arm

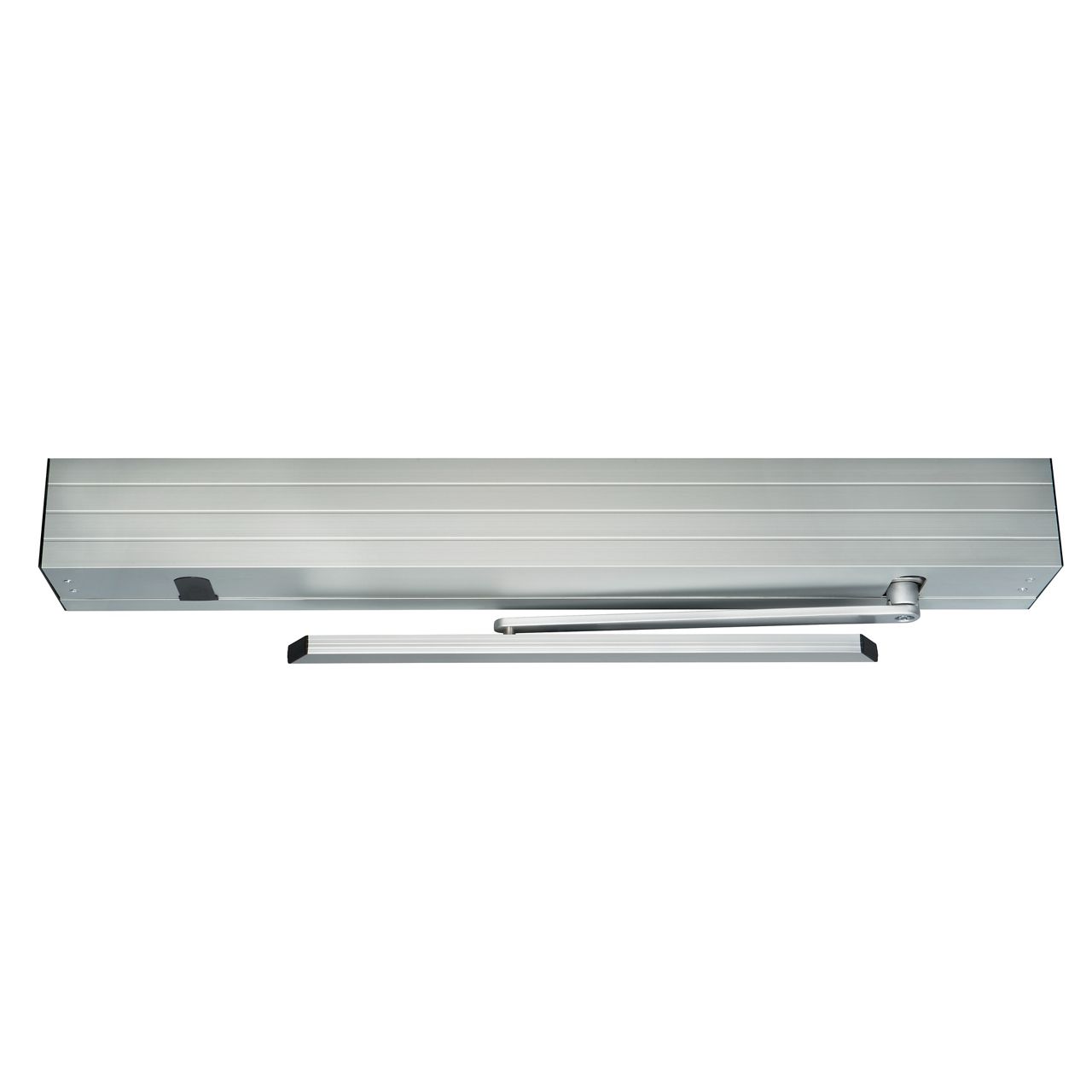

- SS8200 in clear with the track arm

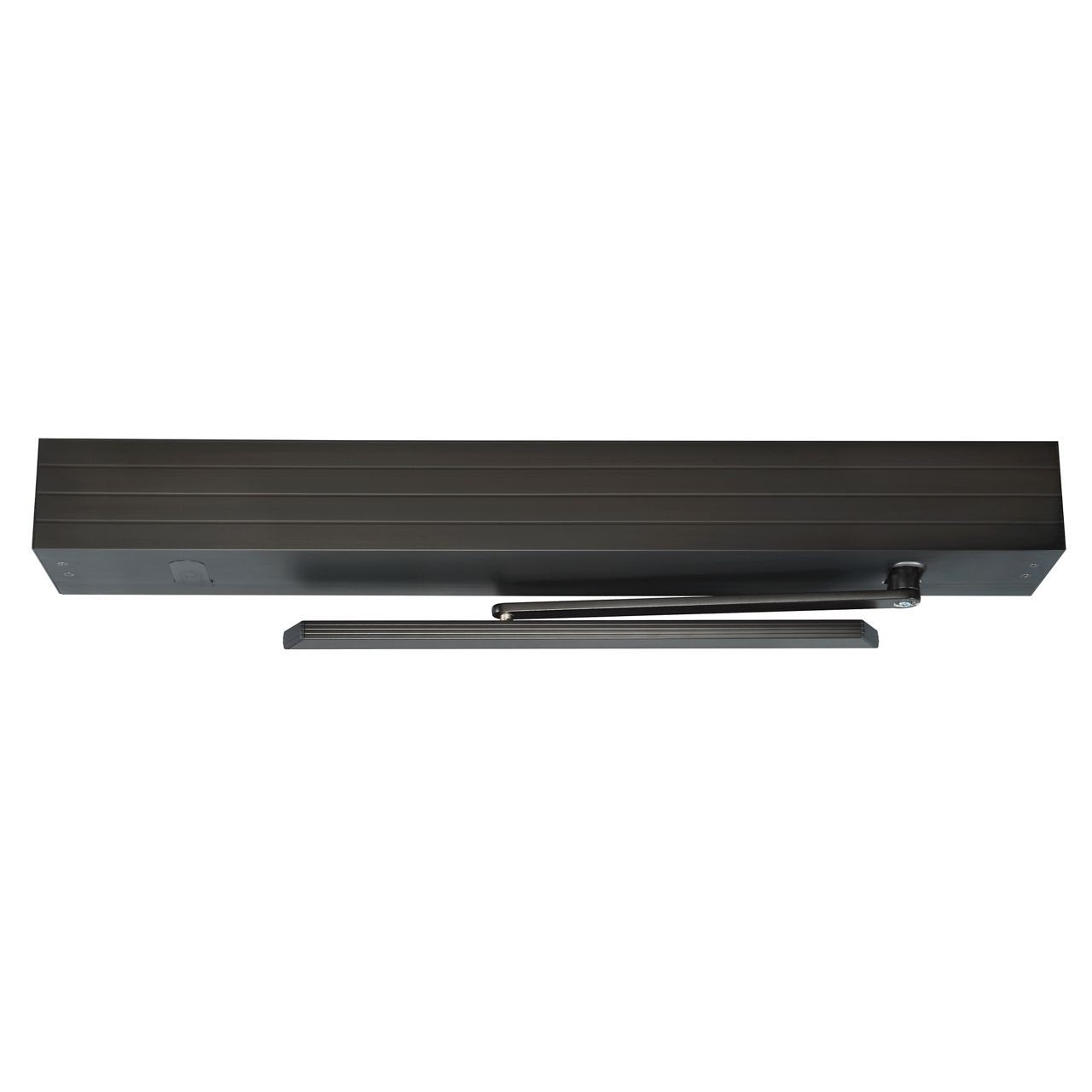

- SS8200 in dark bronze with the track arm

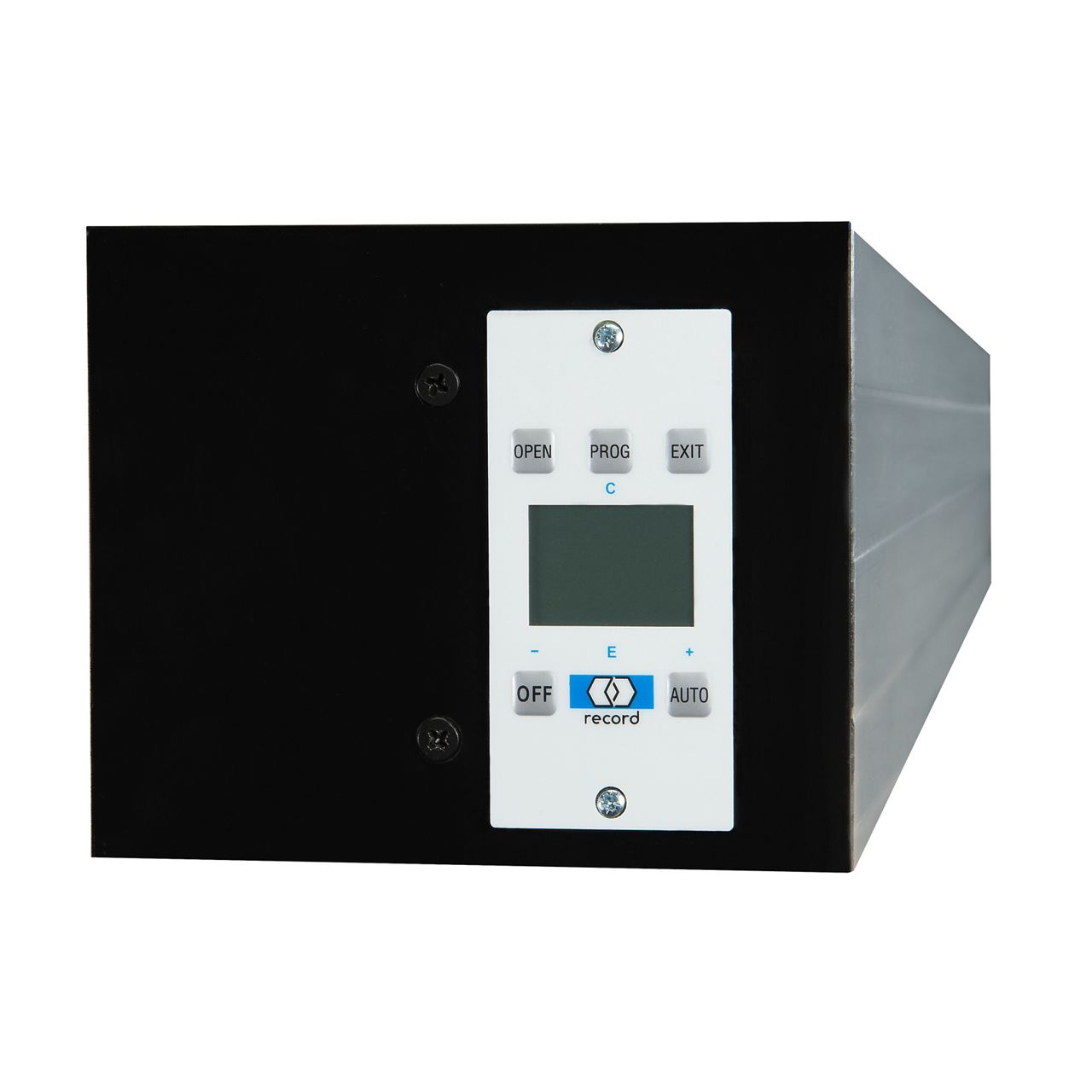

- The SS8200 comes standard with the SimpleLynk Display
SimpleSwing
Low Energy Overview
Take Your Doors from Manual to Modern
ADA
Low energy operators meet the requirement of the Americans with Disabilities Act (ADA). They allow for easy access for disabled individuals by using push plates or other activation devices.
Push or Pull
Can be used as push or pull.
- Header width dimensions: 4.5" x 5"
- Motor: 1/4hp
- Opening angle with track arm: 90 degrees
- Opening angle with standard arm: 120 degrees
- Electrical requirements: 120 VAC @ 15amps 60hz
- Power Supply: 24V AC/DC @.5amp for magnets, electric strikes
- ANSI/BHMA 156.19
- UL325/UL228
- Operating Conditions: -40°F and +140°F
Product Brochure
Drawings (pdf)
Install Manual
Replacement Parts
Selection Guide
Recorducation Videos
6100 vs 8100 Technical Differences
Install a Standard Arm
6100/8100/SS Simultaneous Pairs
Learn to properly wire a sync cable between two operators.
Setting the time delay on 6100/8100/SS
Control reset from display pad
Simple reset from display pad without having to remove the cover.
Programming Opening Assist
How to program opening assist on a Record swing door operator. This is NOT push & go.
Locking Parameters
Resetting Control
Rehanding an Operator in the Field
Wiring an Electric Strike
Additional Videos
