Low Energy
Doors equipped with low energy operators can be opened manually or through the use of a "knowing act" device (i.e., push button, remote, or wave to open).
The HA9 low energy operator comes loaded with features while offering the same quiet, dependable operation you've come to expect in the low-profile header size you love. The HA9 is perfect for high-traffic locations including schools & universities, hospitals, retail stores, airports, convention centers, casinos, industrial buildings and offices.
Quality Heavy Duty Commercial Construction
- Electro Mechanical Design – for simple dependable operation
- Door Stop engineered to resist abusive situations
- Cast Alloy Arms
- Quiet Operation
Innovative Features
- Power Assist
- One Touch Learn Cycle
- Plug-n-Play design for fast trouble free installation
- Stack Pressure Compensation
- Adapts to environmental conditions
- Electric Strike Integration
- Lock Retry
- Compatible with most safety and activation devices
- Integrates with building access & security systems
- Energy Saving for low running cost
Built In Safety Features
- Lock Kick for a positive latch during fire/safety events
- Stop on Stall
- Reverse on Obstruction
- Sensor Monitoring
Durable
- Built to outlast the competition
- Perfect for high traffic locations

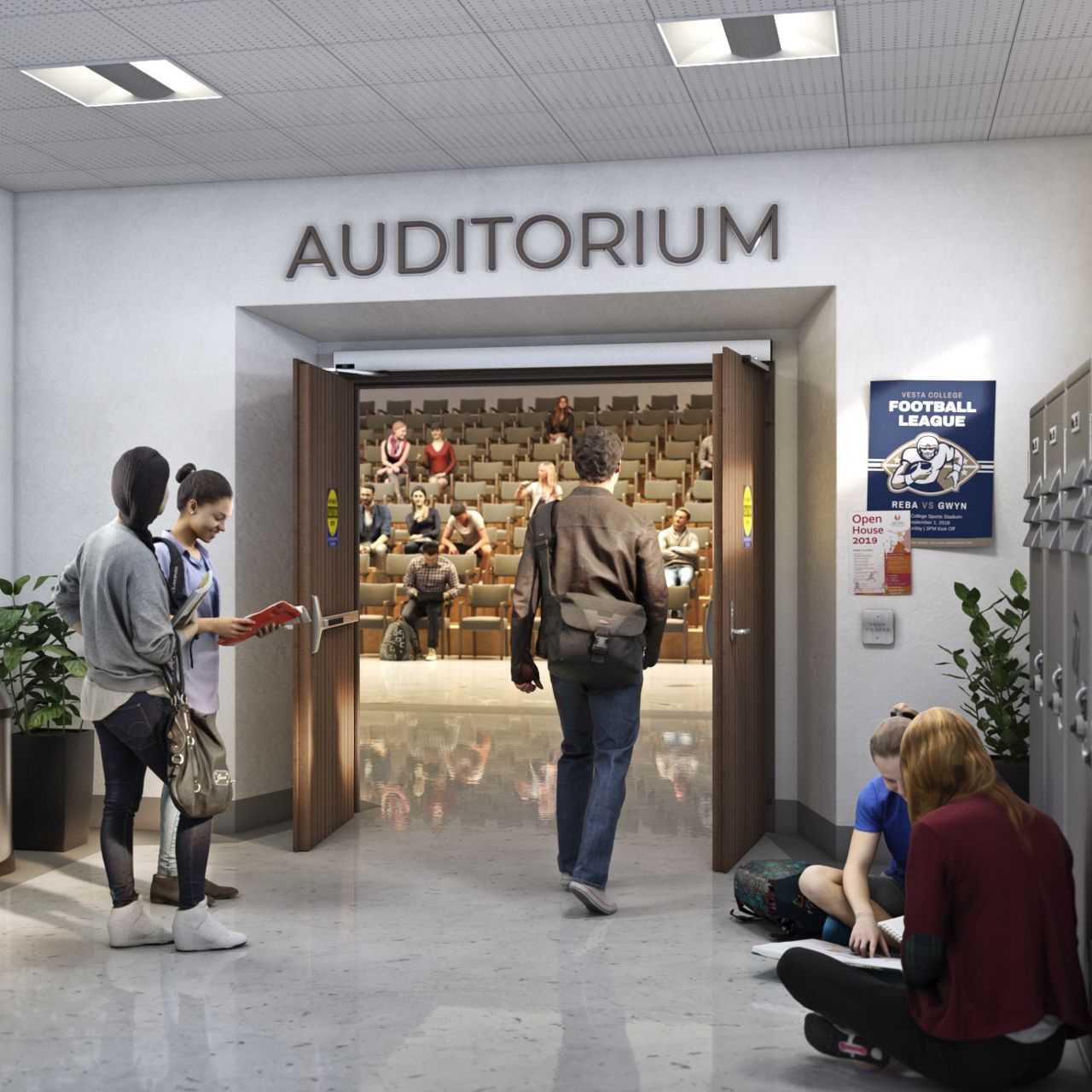

Dual HA9 with a pull arm
- Dual HA9 with a pull arm

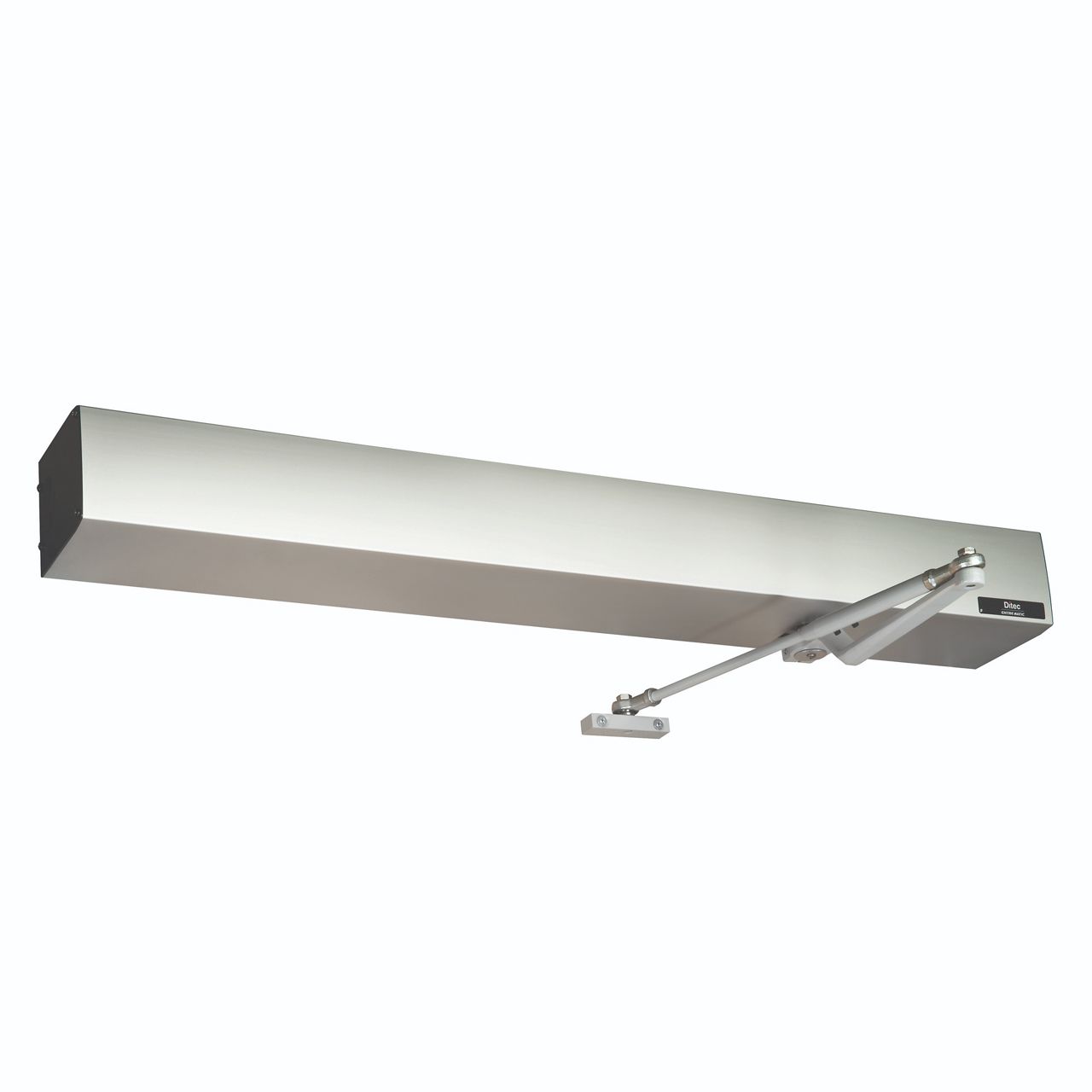

- HA9 in clear with a push arm

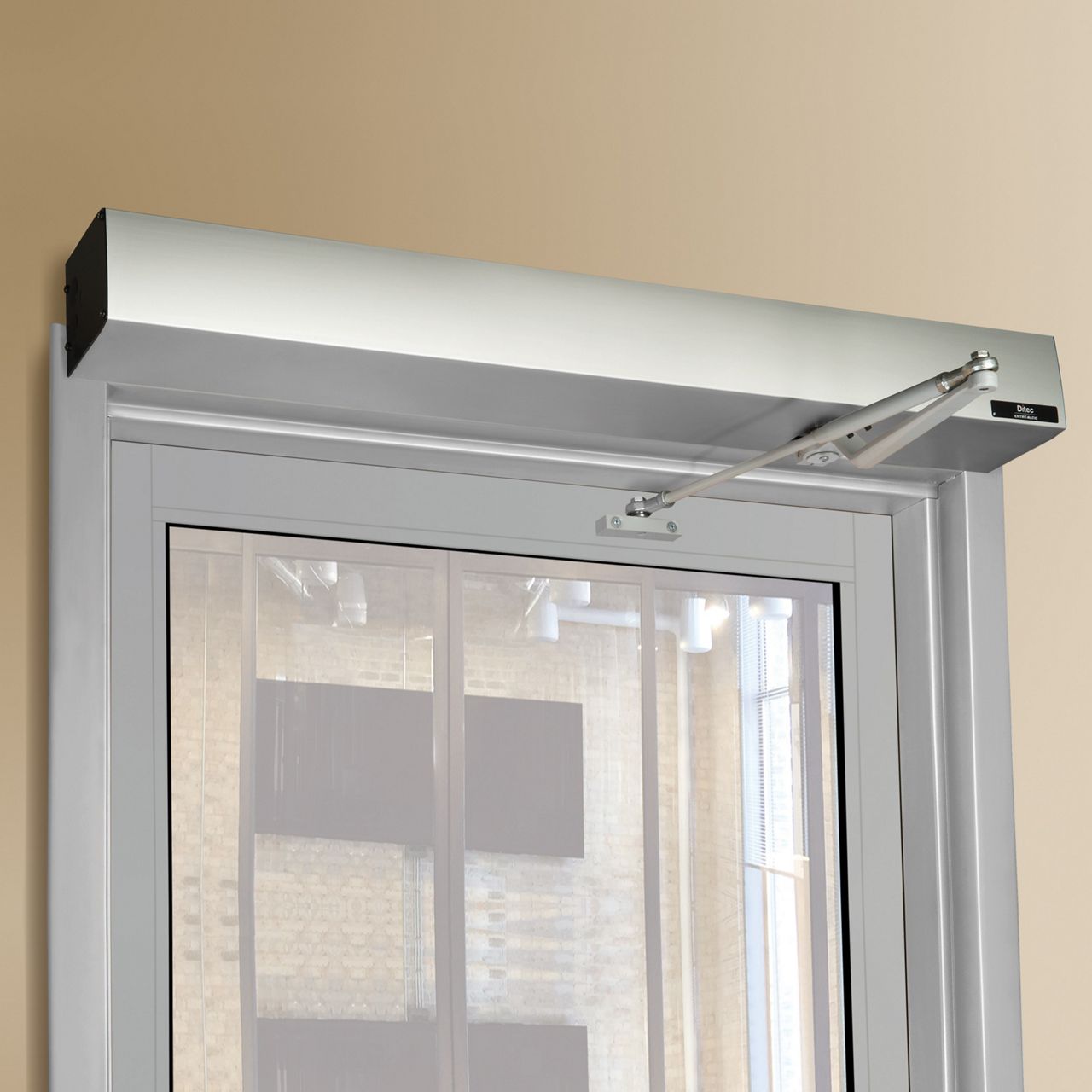

- HA9 in clear with a push arm
- HA9 in clear with a pull arm

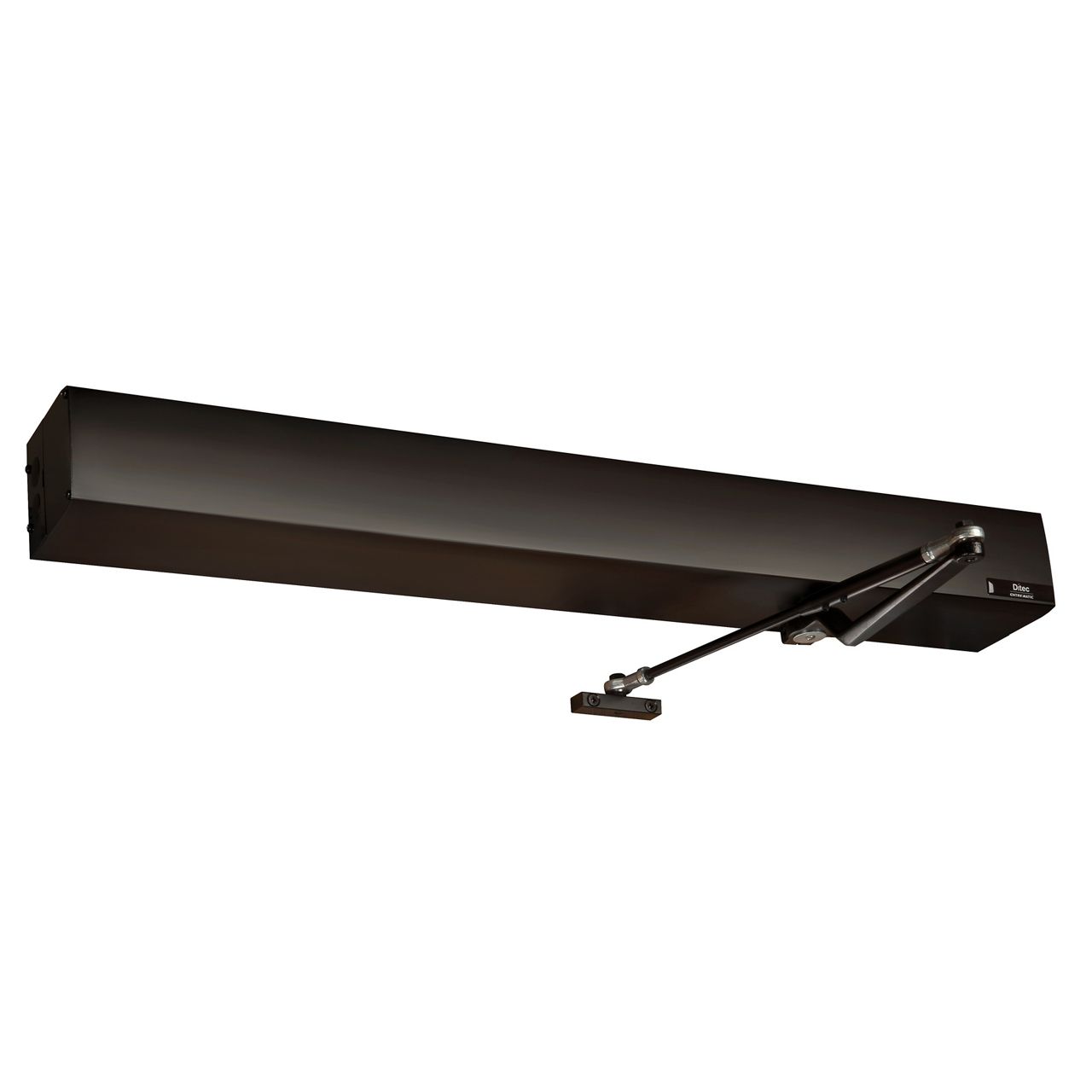

- HA9 in dark bronze with a push arm

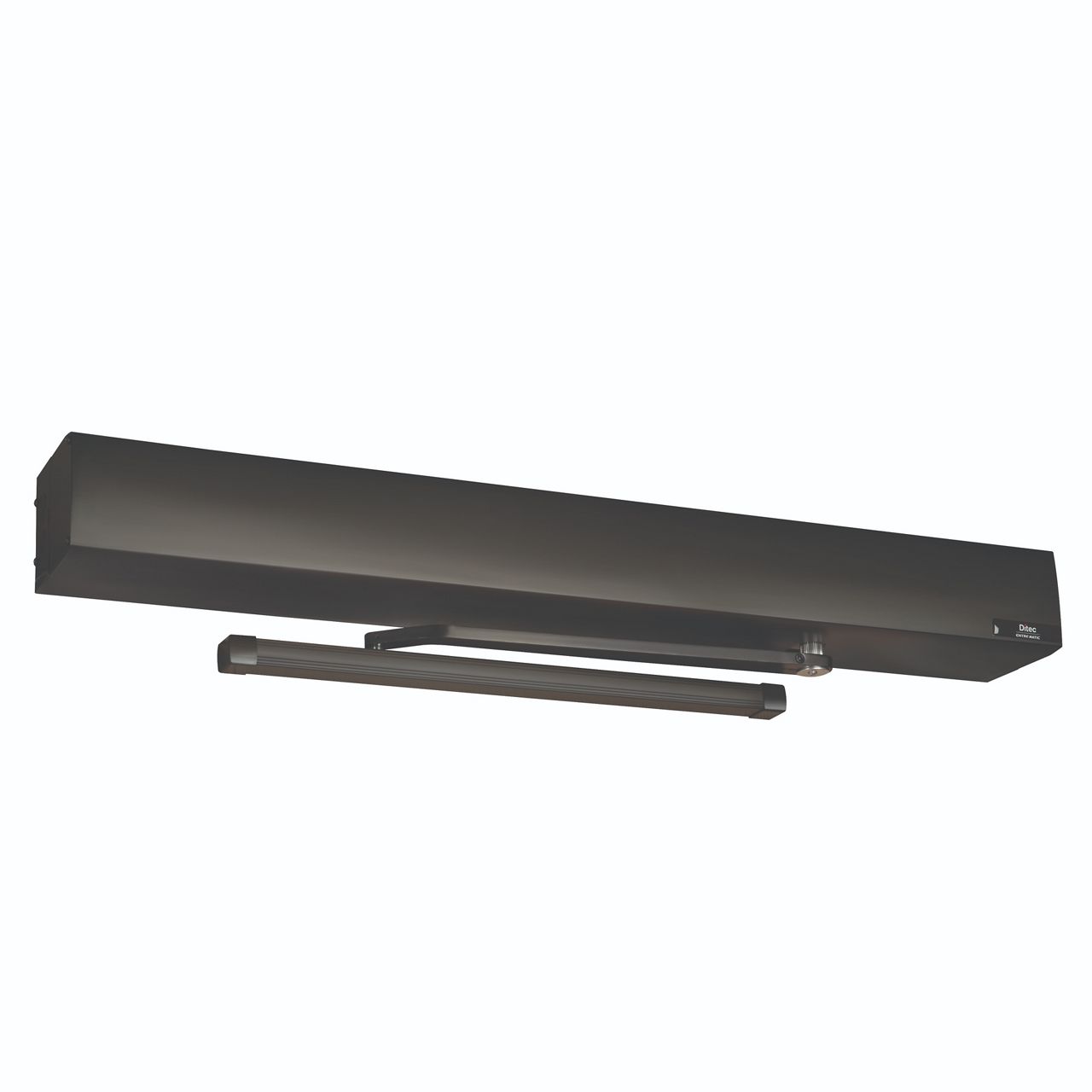

- HA9 in dark bronze with a pull arm
HA9
Low Energy Overview
Take Your Doors from Manual to Modern
ADA
Low energy operators meet the requirement of the Americans with Disabilities Act (ADA). They allow for easy access for disabled individuals by using push plates or other activation devices.
Power Assist
Provides a lighter feeling when opening a heavy door manually.
Push & Go
A light manual push acts as an activation switch, and initiates an open cycle.
- Header Profile Dimensions: 4 1/8" x 5 1/8"
- Motor Type: Electro-Mechanical
- Manual Opening/Closing Force: Adjustable 5 to 30 lbs.
- Operating Voltage: 120 VAC
- Auxiliary Power Output: 24 VDC @ 1/2 amp (optional upgrade to 1.1 amps)
- Push Reveal: Up to 14"
- Pull Reveal: Up to 2 3/8"
- Non-Handed: Available in push or pull
- ANSI A156.19 Compliant: Yes
- UL/CUL Listing for UL 325/UL10C: Yes
Product Brochure
Drawings (pdf)
Wiring Requirements
Replacement Parts
Selection Guide
Installation Videos
Pull Arm Installation
Push Arm Installation
Tech Tip Videos
HA9 Safety Features
HA9 with Electric Strike
HA9 with Battery Back-Up
