Heavy Duty
Capable of handling high-traffic locations.
8300 Series
The 8300 Series swing door operator is made for clean room environments with its sloped cover.
The 8300 Series utilizes the exact same mechanisms as Record’s proven 8100 Series including the same back plate, arm and internal operating mechanisms. However, in order to best meet the stringent cleansing requirements of clean room environments, the 8300 series is provided as standard with a sloped, stainless steel cover that allows either a quick wipe down or a thorough hose spray.
- #304 polished Stainless steel cover
- Sloped so water runs off after a spray
- 35 degree slope standard
- Adds further protection to internal components
- Fits snug over the standard 8100 series aluminum cover
- 8300 cover measures 3.97″ longer than DOW
- Non-handed
- Plastic insert required to cover hole in non-used handed notching

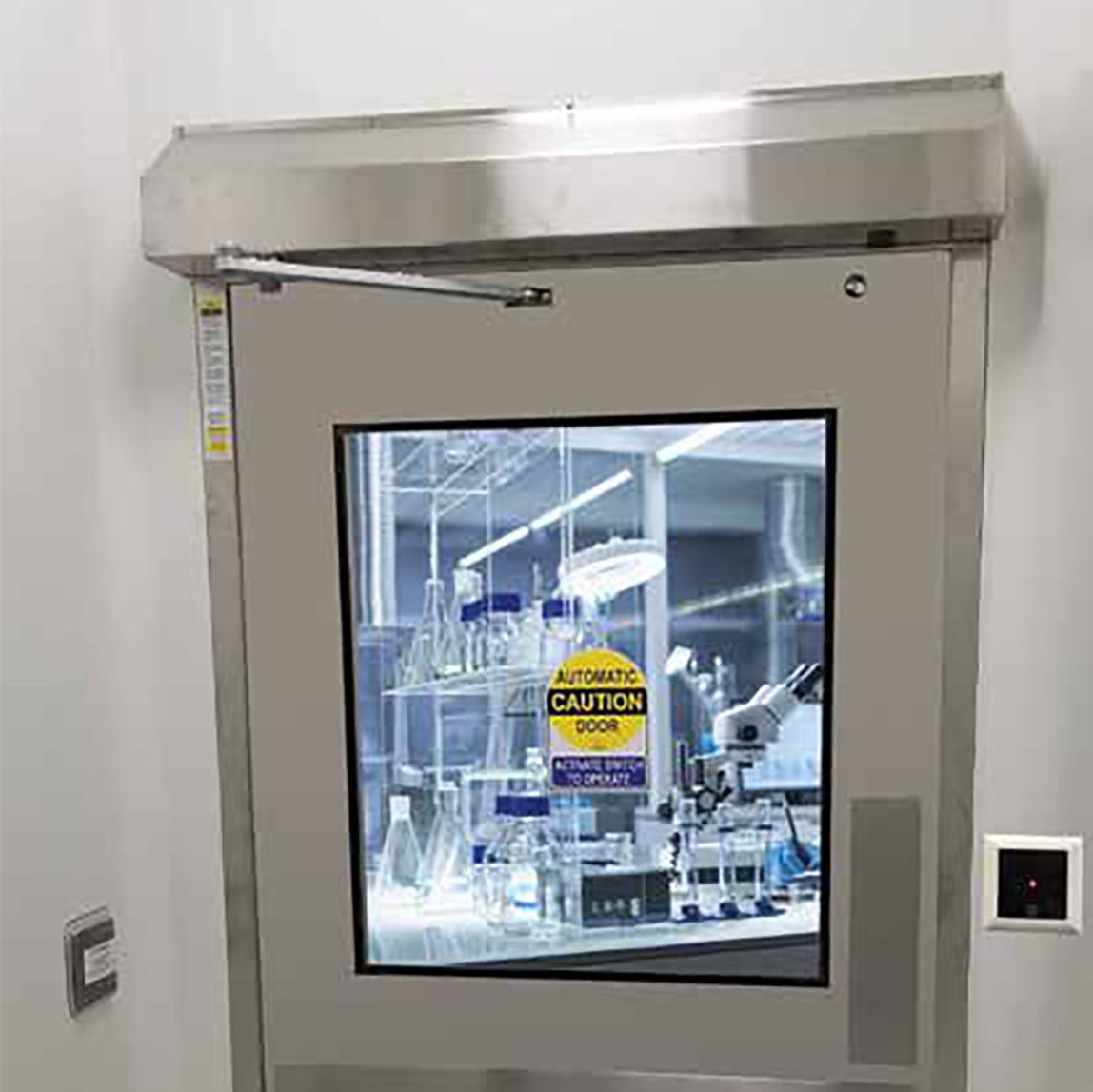

8300 with stainless steel cover made especially for clean rooms
- 8300 with stainless steel cover made especially for clean rooms

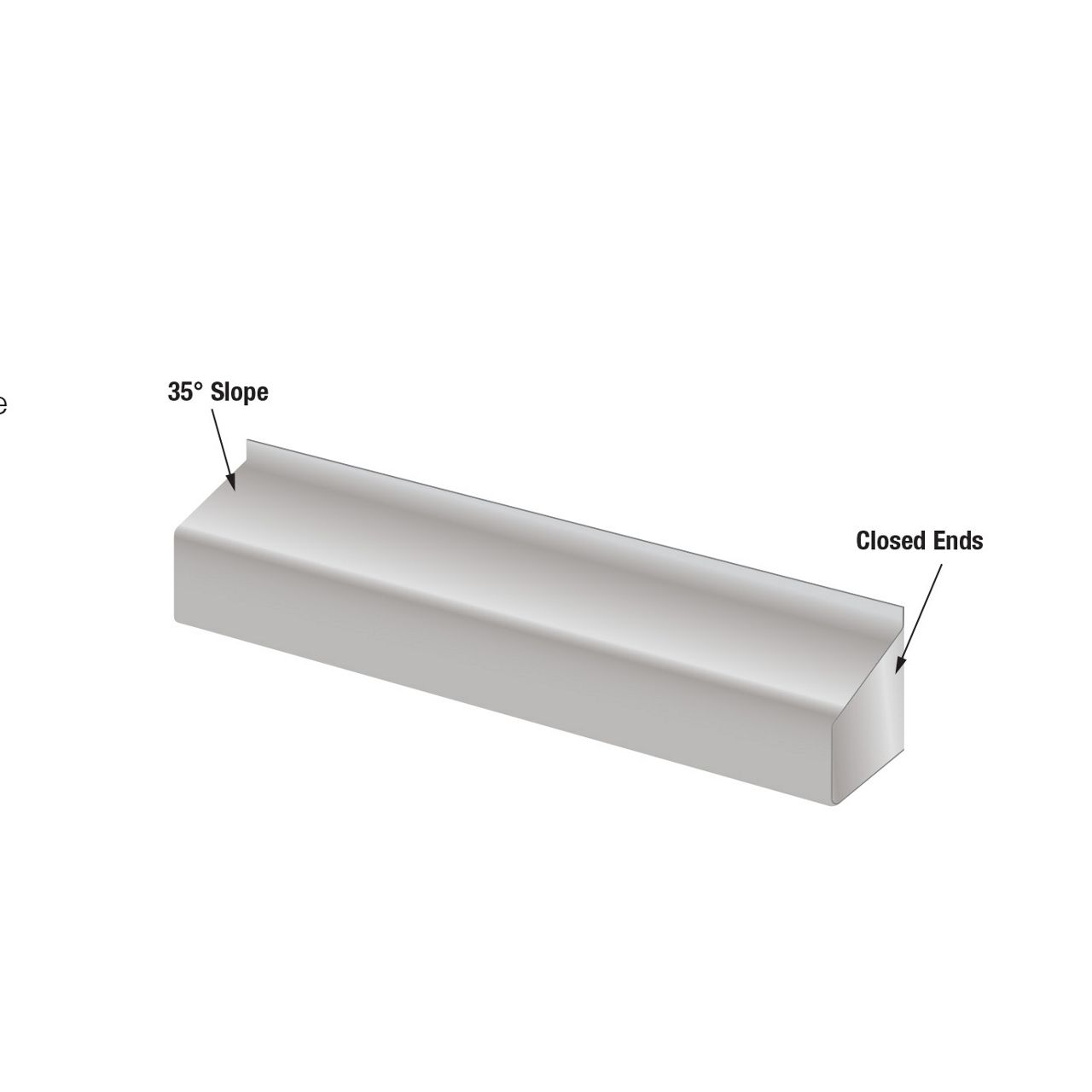

- 35° Sloped cover allows water to run off
Push or Pull
Can be used as push or pull.
- Header size: 8 7/16" Height and 4 5/16" to start of 35° slolped cover and 5 1/16" Depth
- 24 volt, 1/4 hp motor
- Non-handed
- Push or pull
- Complies with ANSI 156.19
- Meets UL235 and UL228
- #304 polished Stainless steel cover
- 8300 cover measures 3.97″ longer than DOW
- Non handed
