The DS10 manual sliding door system is the perfect choice for a variety of applications with its flexible configurations and dependable performance. Manual sliders are most often used in ICU/CCU applications with the available smoke seal, but also provide an elegant, open feel to offices and conference rooms.
Trackless single slide and three-panel telescopic configurations are available.
Available Options:
- UL 1784 smoke seal package
- 1" wide jambs for additional clear opening space
- Magnetic Hold Open
- Self Closing feature closes active leaf to prevent doors from being left openA/L Dampener for soft-close
- Anti-static system reduces unwanted electrostatic discharge in hospital environments
- Centering wheel helps ensure a positive latch despite hallway air pressure
- Track Package
- Positive Latching
- Full Closing Dampening Device for soft close
- Gutter & snap for integrated mini-blinds
- Special finishes

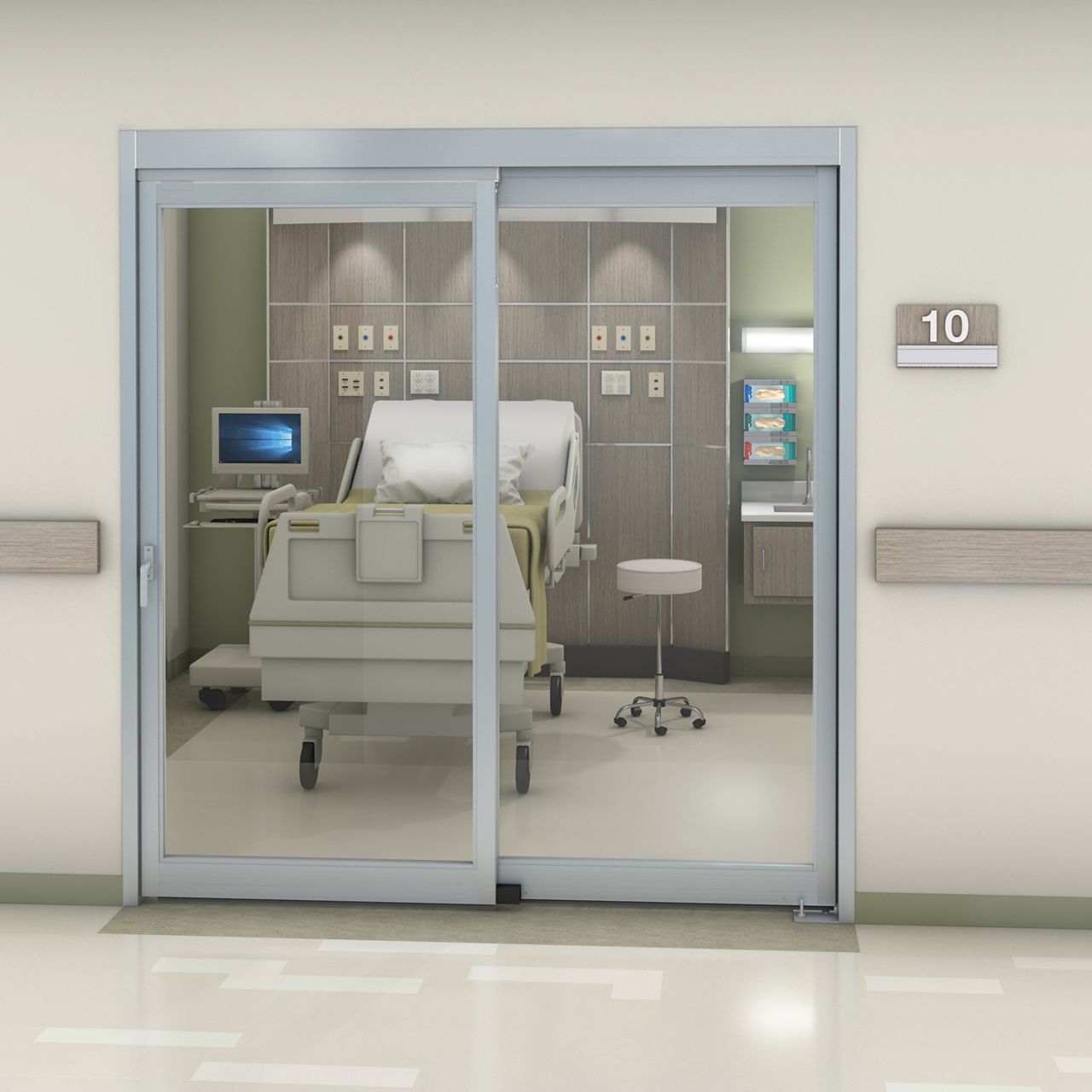

DS10 ICU single slide in clear
- DS10 ICU single slide in clear

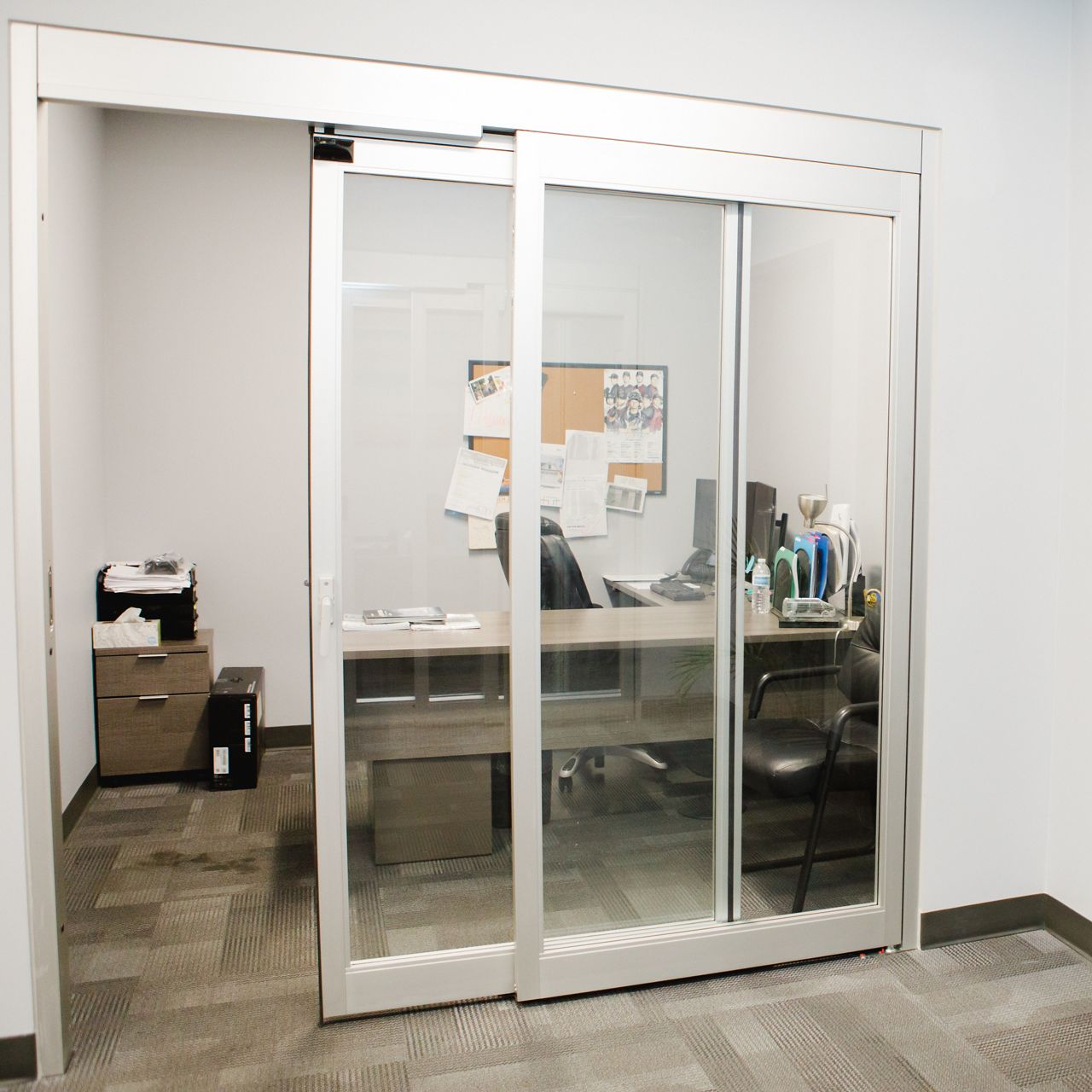

- DS10 single slide in office application

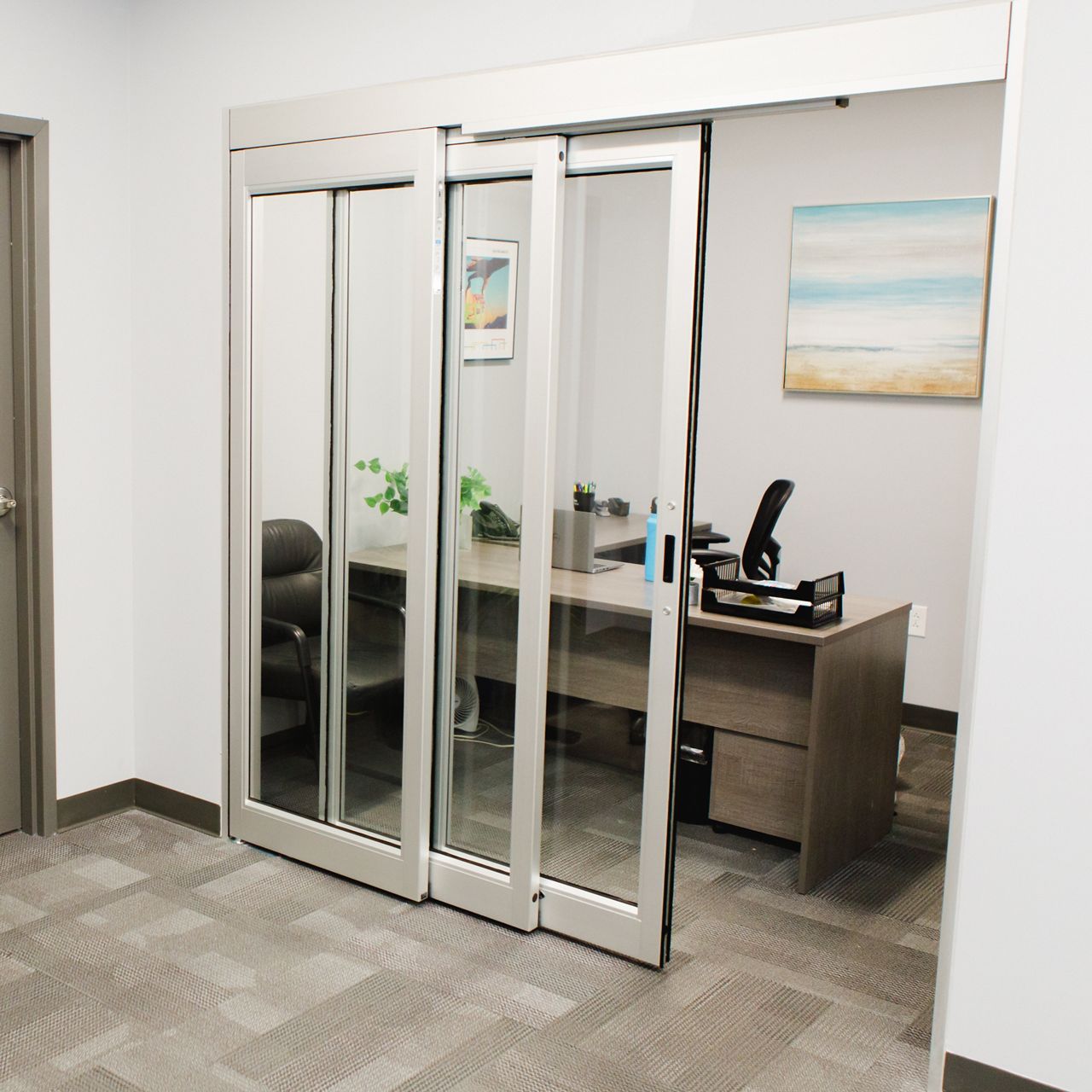

- DS10 telescopic in office application

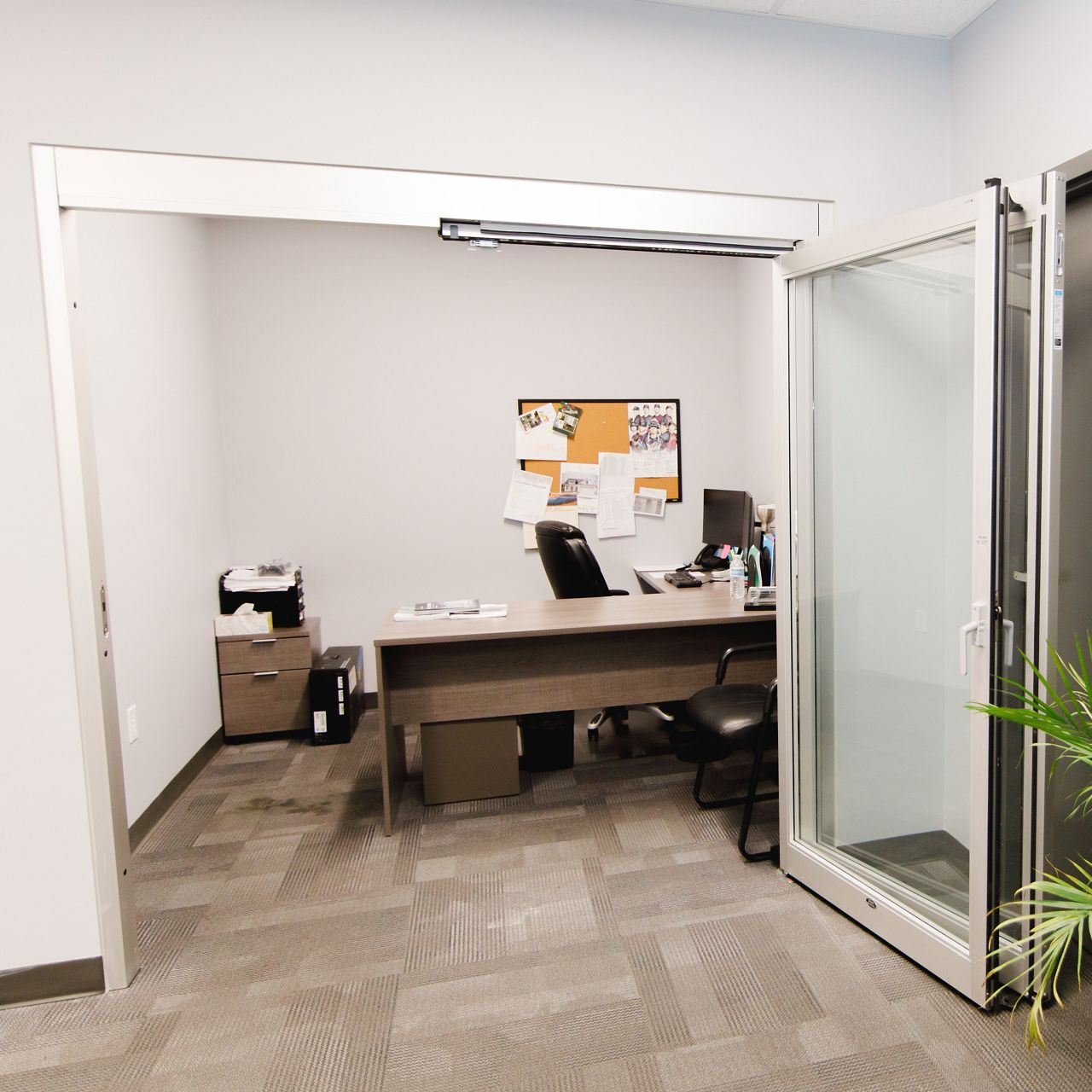

- DS10 full breakout, single slide

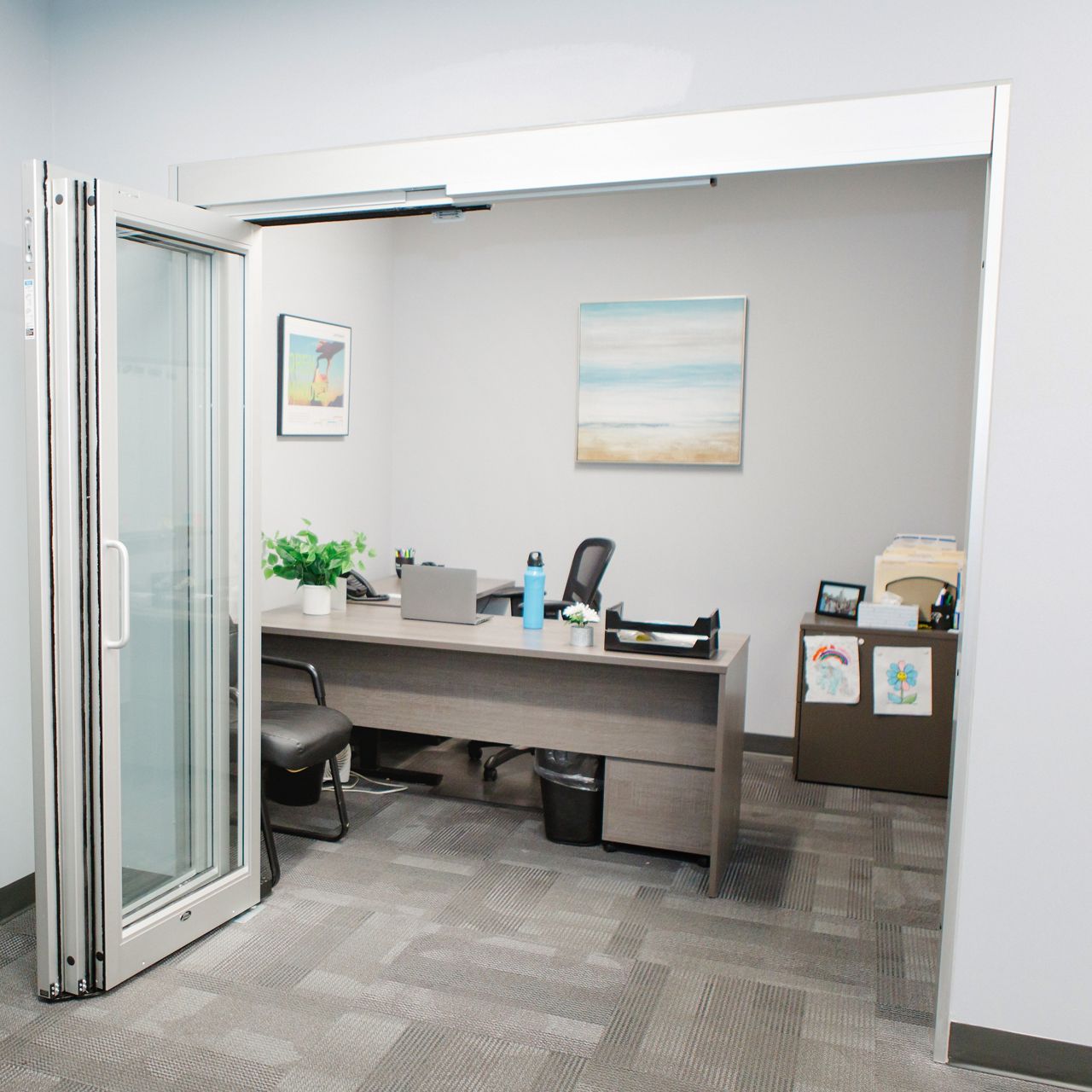

- DS10 full breakout, telescopic
DS10
Product Portfolio Overview
A world of automatic doors for your every need
- Standard Configurations: two-panel single slide or three-panel telescopic trackless (full breakout or fixed sidelite)
- Header Size: 4 1/2" x 4 1/2" (single slide); 6" x 4 1/2" (telescopic)
- Minimum Clear Door Opening Width: 41 1/2" for 8' unit width; 44 1/2" for 8'6" unit width
- Vertical Jambs: 1 3/4" x 4 1/2"; 1 3/4" x 6" (telescopic)
- Glass Stops: 1/4" (5/8", 1" and 1 1/4" also available)
- Door Panels: Narrow 2 1/2" stiles (standard)
- Muntin Bars: 1 3/4" (standard)
- Top Rails: 2 1/2" (active leaf); 4" (sidelite)
- Bottom Rails: 4" standard (7" and 10" available)
- Door Pulls: Surface or Recessed
- Seal: UL 1784 smoke rated seals available
- Finish: Clear or Dark Bronze anodized (standard)
