5800 IC-Matic

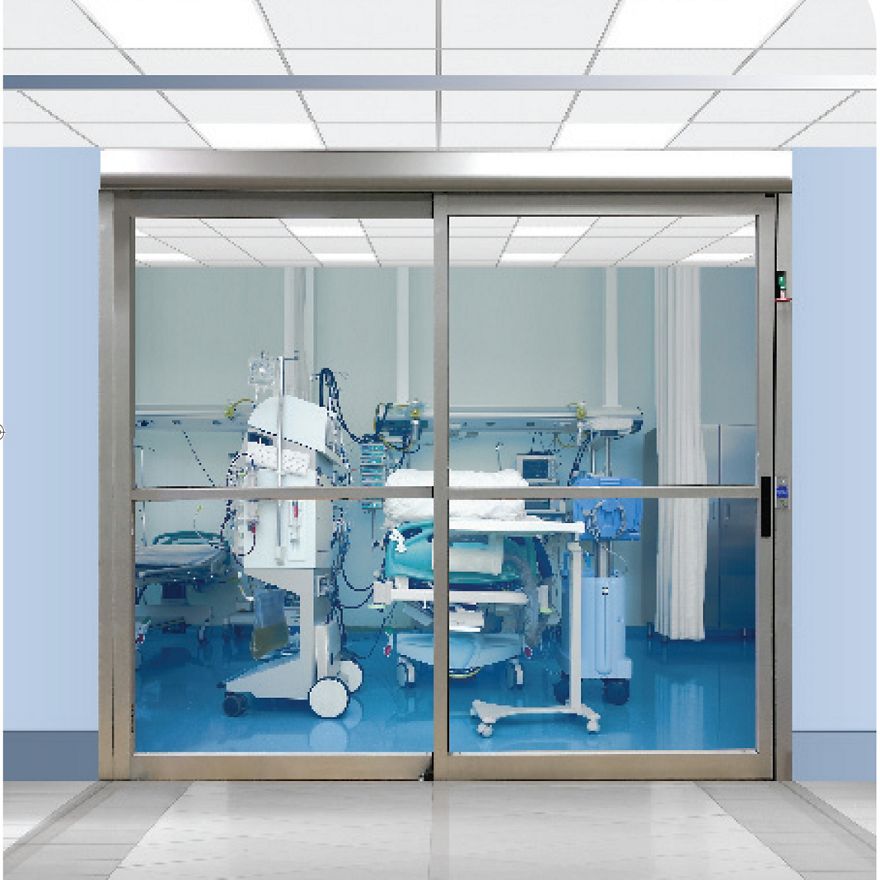

The Record IC-Matic is a low energy power operation sliding door system ideal for intensive care wards. A sleek design and reduced header height proves attractive while the ability to open automatically through jamb or wall mounted touchless wall plates eliminates the need to physically touch an activation device, thereby reducing greatly the spread of germs.
5800 in clear
5800
Product Portfolio Overview
A world of automatic doors for your every need
- No hookbolt protrusions in opening under normal operation
- Fail secure locking with manual emergency override
- Improved 2-way flushbolt design on sidelite
- When engaged, a floor 'foot" will apply pressure to floor, keeping sidelite in line with frame for normal operation.
- Simple one motion disengagement for breakout access.
- Single and Bi-part Sliding Door Packages
- Meets UL1784 requirements
- Sidelites are 1¼" narrower than the slide panel
- Increased DOW over standard 5900 ICU Doors
- 41 5/8" DOW on a 96" OFW
- Eliminates finger pinch protection during breakout
- Header Profile: 4.25" H x 7.25" W
- Uses standard 4.5" jamb profiles: giving the header a 2.75" overhang
- All available knowing act activations Motion Sensors
- Wave Activation Card Reader
- Will meet ANSI 156-38 low energy power operated sliding door standard
- Requires 120V power hookup
- Able to accommodate glass sizes up to 1" including any "Smart Glass" products
- Always equipped with record Smart Panel
