Presence Sensors

Presence sensors will detect the "presence" of an object or person within a predetermined detection pattern and prevents a door from striking the person or object during operation.

For Swing Doors:

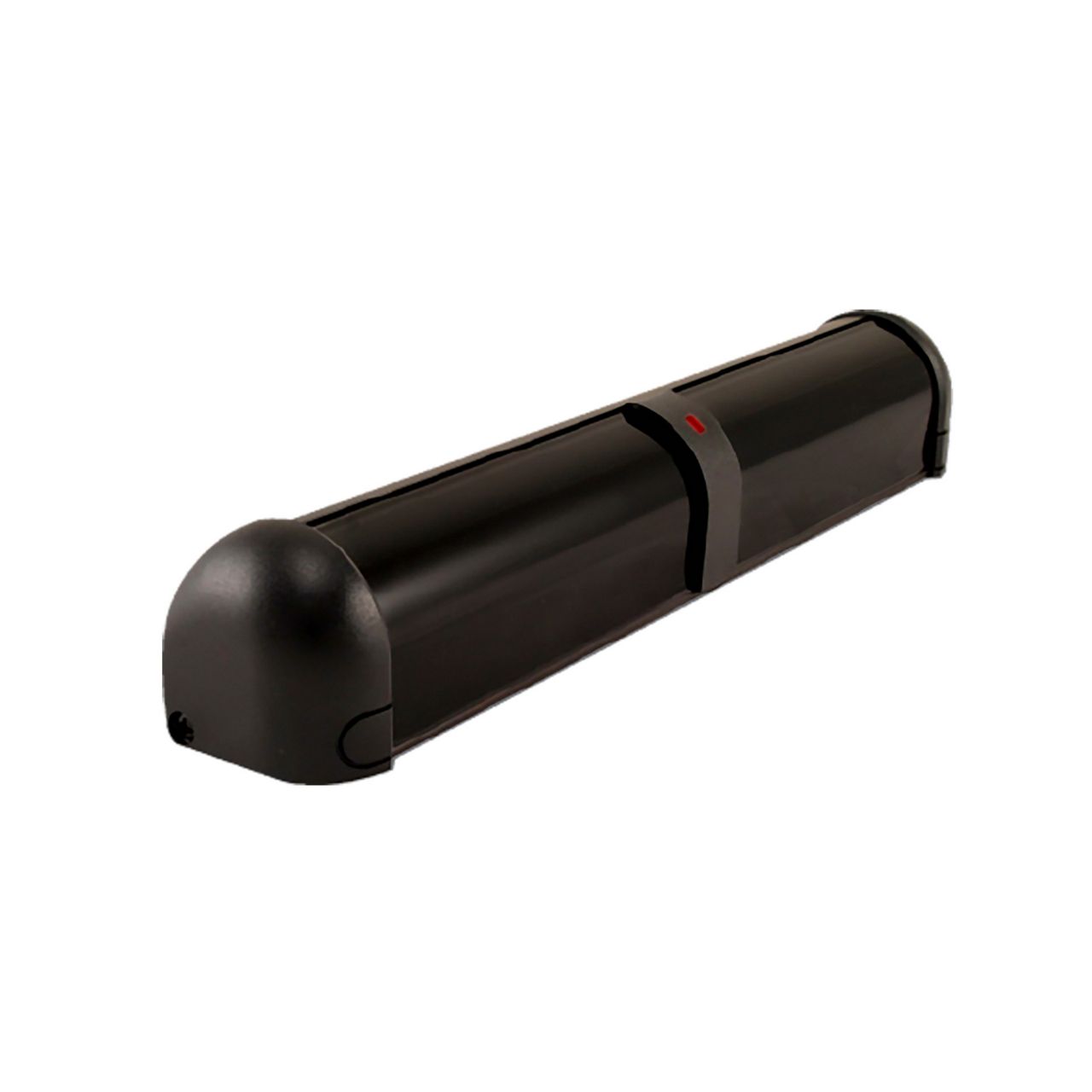

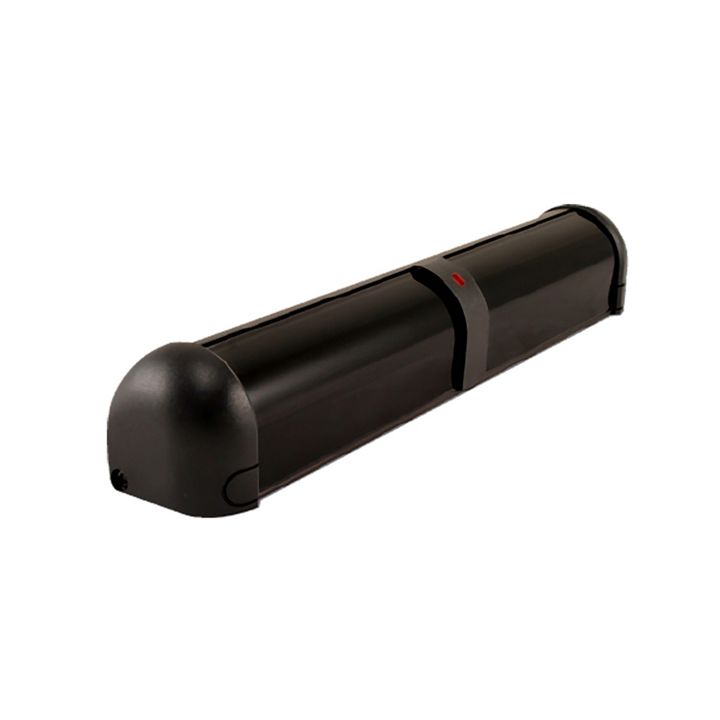

BEA Bodyguard

BEA's Bodyguard is an overhead presence sensor designed for pedestrian automatic doors. It is designed to prevent a closed door from opening and an open door from closing when a person is in the detection zone. When combined with the BEA SuperScan, it's capable of meeting ANSI 156.10 standard for swing door safety.

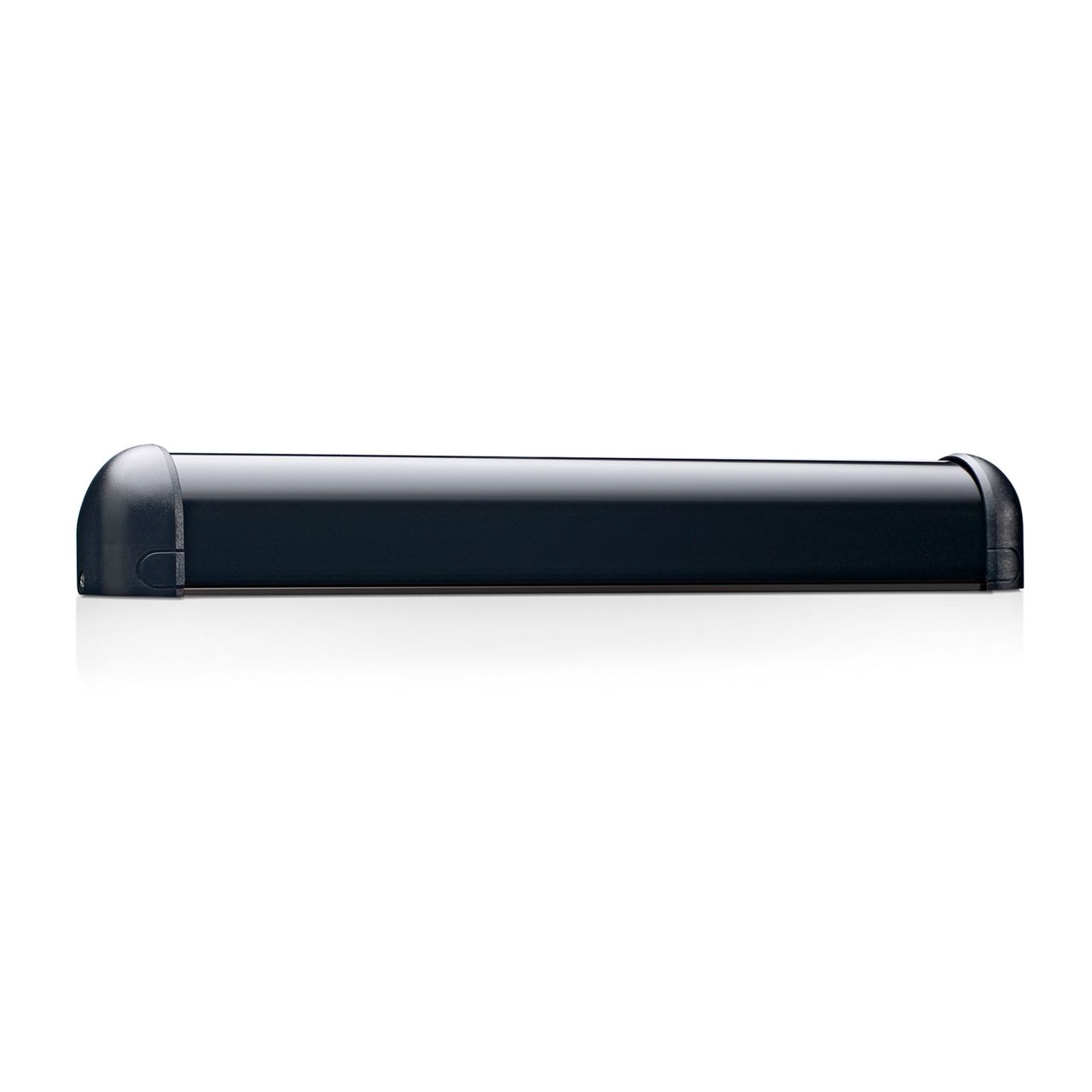

BEA SuperScan

BEA's SuperScan is a door mounted, active infrared safety sensor designed for use on swinging and low energy doors. It uses triangulation to detect the presence of a pedestrian, while the door is opening and closing. It is capable of meeting ANSI 156.10 standard for swing door safety when used with the BEA Bodyguard.

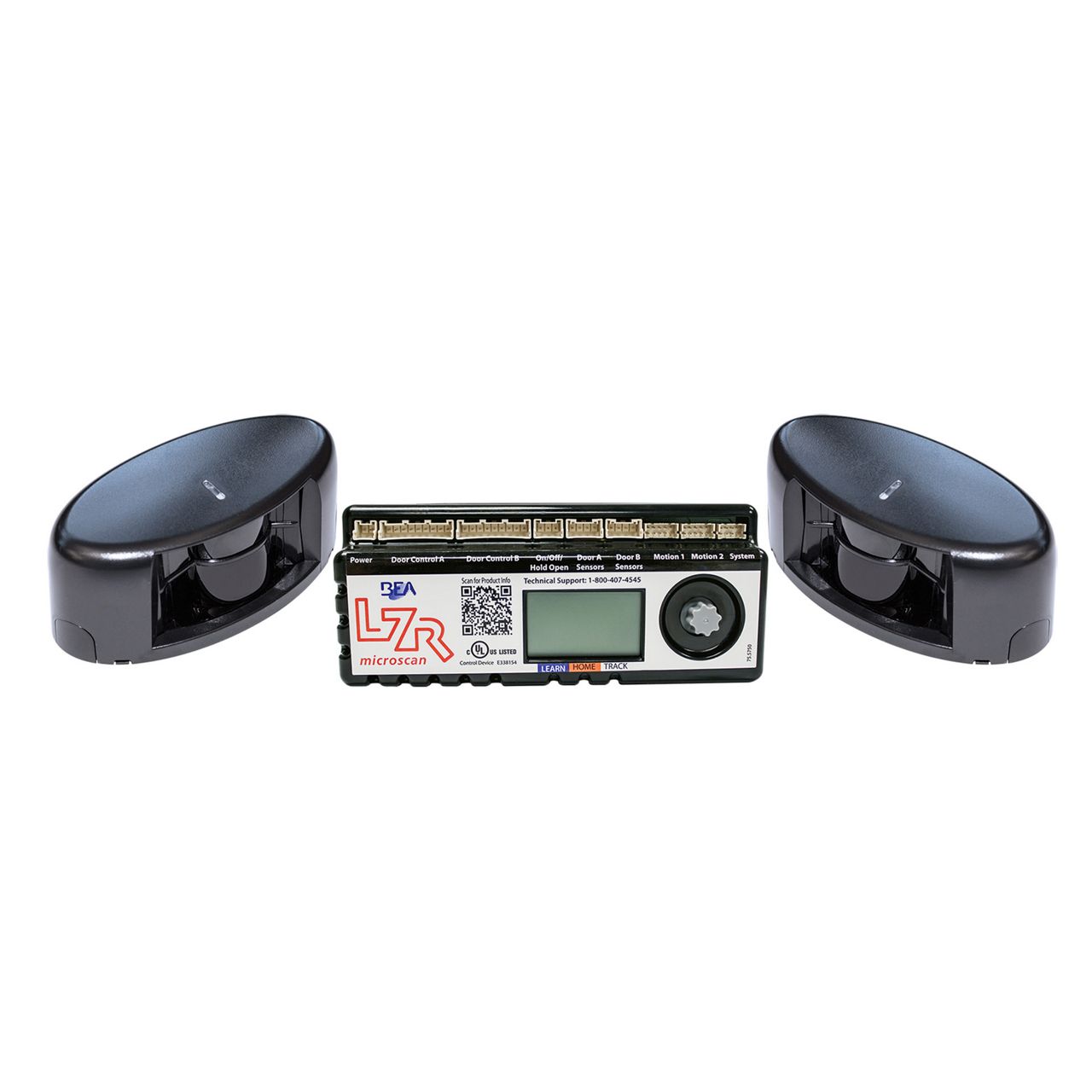

BEA LZR Microscan

BEA's LZR-Microscan is an easy to instal laser-based sensor system designed for automatic swing doors. It provides adjustable pattern depths that exceed the ANSI 156.10 8.2.2.3 standard and offer 100% coverage in all door states (fully open, fully closed, opening and closing).

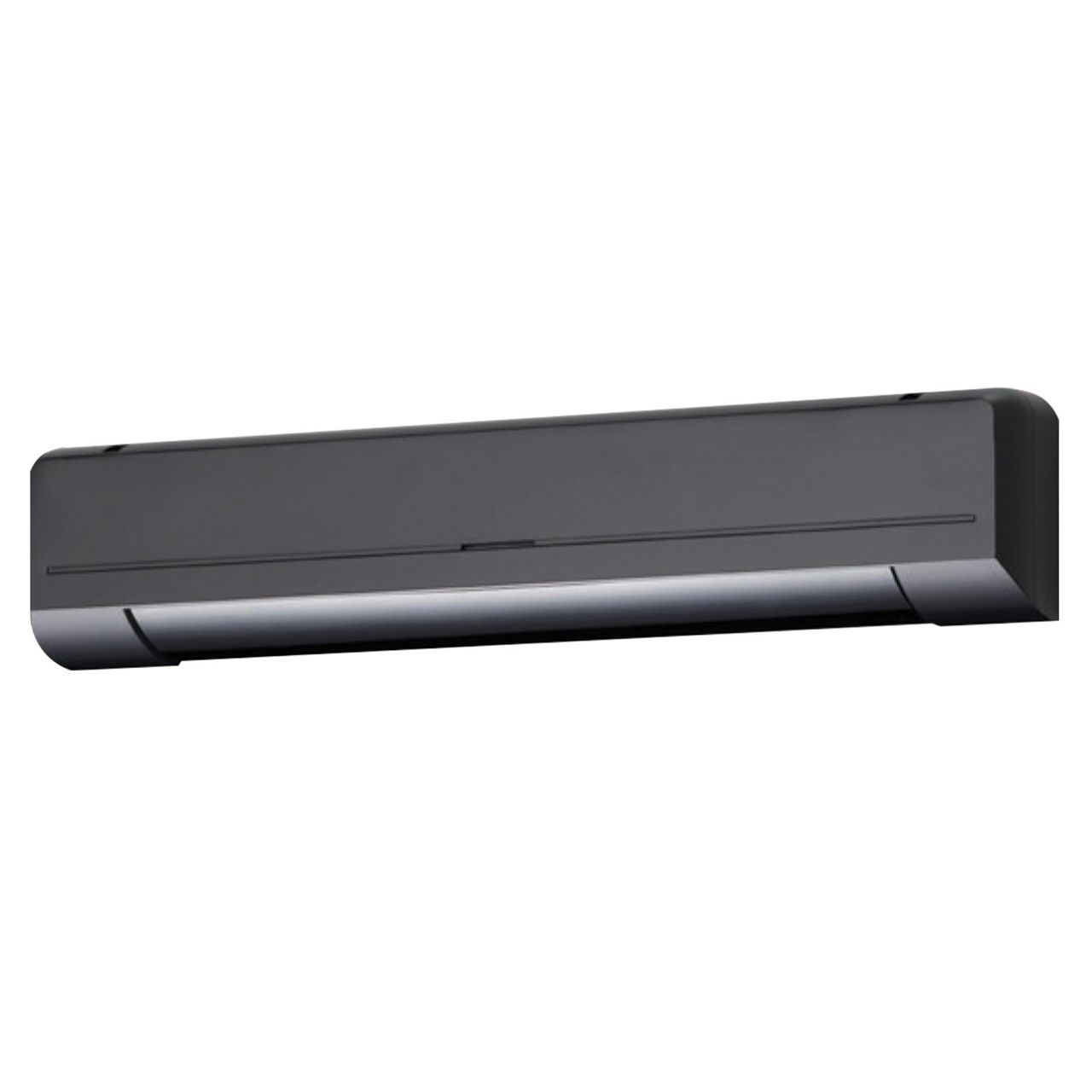

Optex Pro-Swing Elite T

The Optex Pro-Swing Elite T is designed to detect moving or stationary people in the swing path of the door. It provides full detection pattern that covers the entire swing path of the doors in full open and full closed position, eliminating the need for an overhead safety sensor.

For Sliding Doors:

BEA IXIO

BEA's IXIO combines microwave activation and infrared presence technologies with external monitoring for automatic sliding doors.

Optex X-Zone

The OPTEX X-Zone T Sensor is an active infrared and microwave combination sensor designed for sliding doors. It offers presence detection in the threshold when the door is in the open position. Having the ability to detect in the threshold dramatically increases the level of safety that can be achieved.

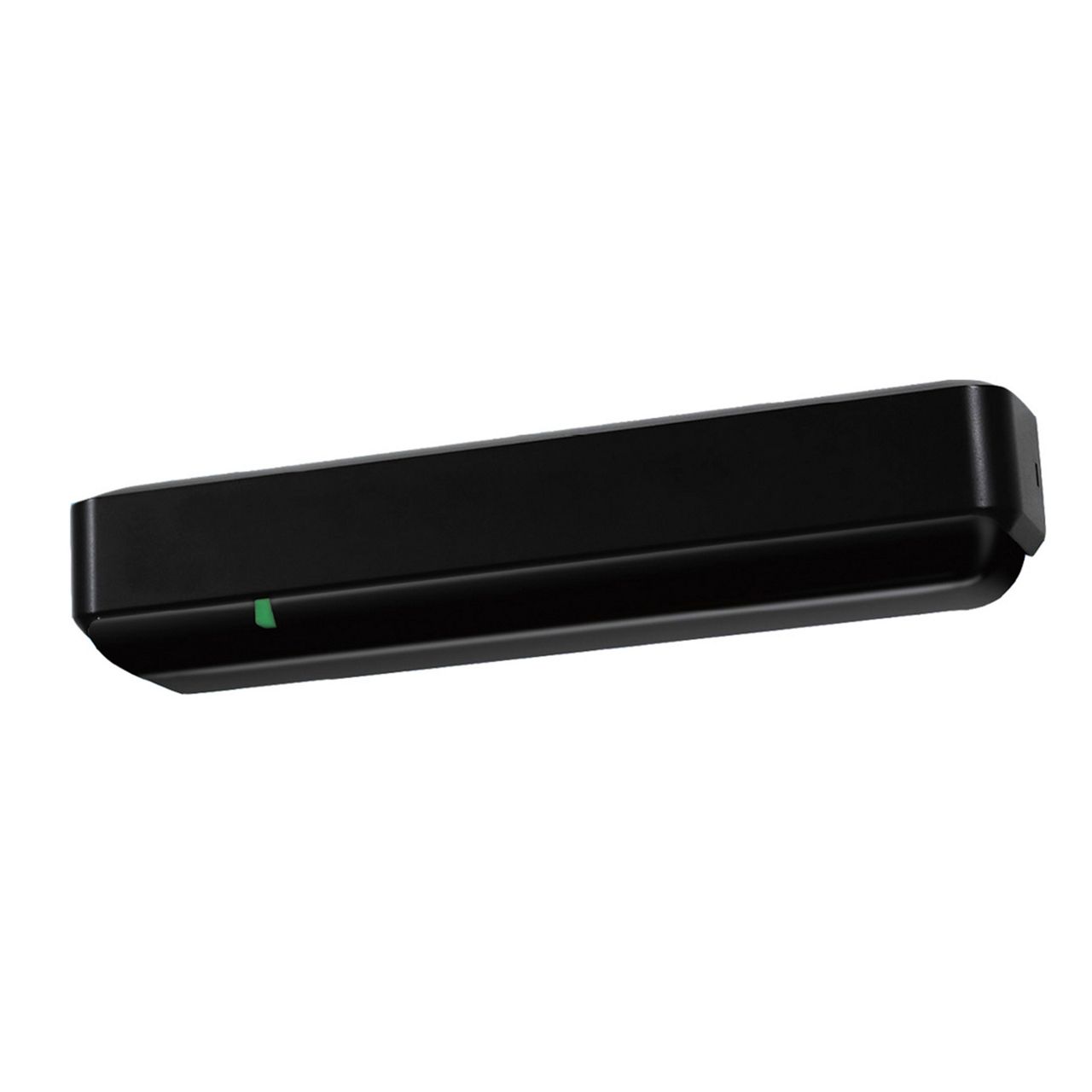

Optex i-oneX T

The OPTEX i-oneX T active infrared door sensor features a safety zone in the threshold and sidelights that are always on due to its large motion and presence detection pattern. The size and shape of the detection pattern can be easily adjusted to match almost any application.
