Low Energy
Doors equipped with low energy operators can be opened manually or through the use of a "knowing act" device (i.e., push button, remote, or wave to open).
HA8-SP
The HA8-SP is the standard profile low energy operator that works in nearly every application including high-traffic and exterior. The standard profile can be installed in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Quality Heavy Duty Commercial Construction
- High precision gears made for sustained long-term use
- Electro Mechanical Design for simple dependable operation
- Permanent lubrication for maintenance free operation
- Cast alloy gear box
- 1/8th HP motor
- Digital control board
Advanced Technology
- On-board programming
- Built in strike/mag lock relay - fail safe or fail secure
- Separate inputs for activation and safety devices
- Plug-n-play design for fast trouble free installation
- Compatible with safety and activation devices
- Integrates with building access & security systems
- Adjustable spring tension overcomes wind and stack pressure
- One-way clutch allows for easy manual door operation
Powerful and Quiet, Yet Forgiving
- Concealed adjustable door stop - eliminates external door stops
- Ultra quiet operation - noise free in both automatic and manual modes
Durable
- Built to outlast the competition
- Perfect for high traffic locations
Versatile Installation Combinations
- Concealed (hinge hung, offset pivoted or center pivoted)
- Surface Mounted Push or Pull
- Dual or Dougle Egress
- Side or Bottom Loading
The HA8-SP is perfect for high traffic locations
- The HA8-SP is perfect for high traffic locations

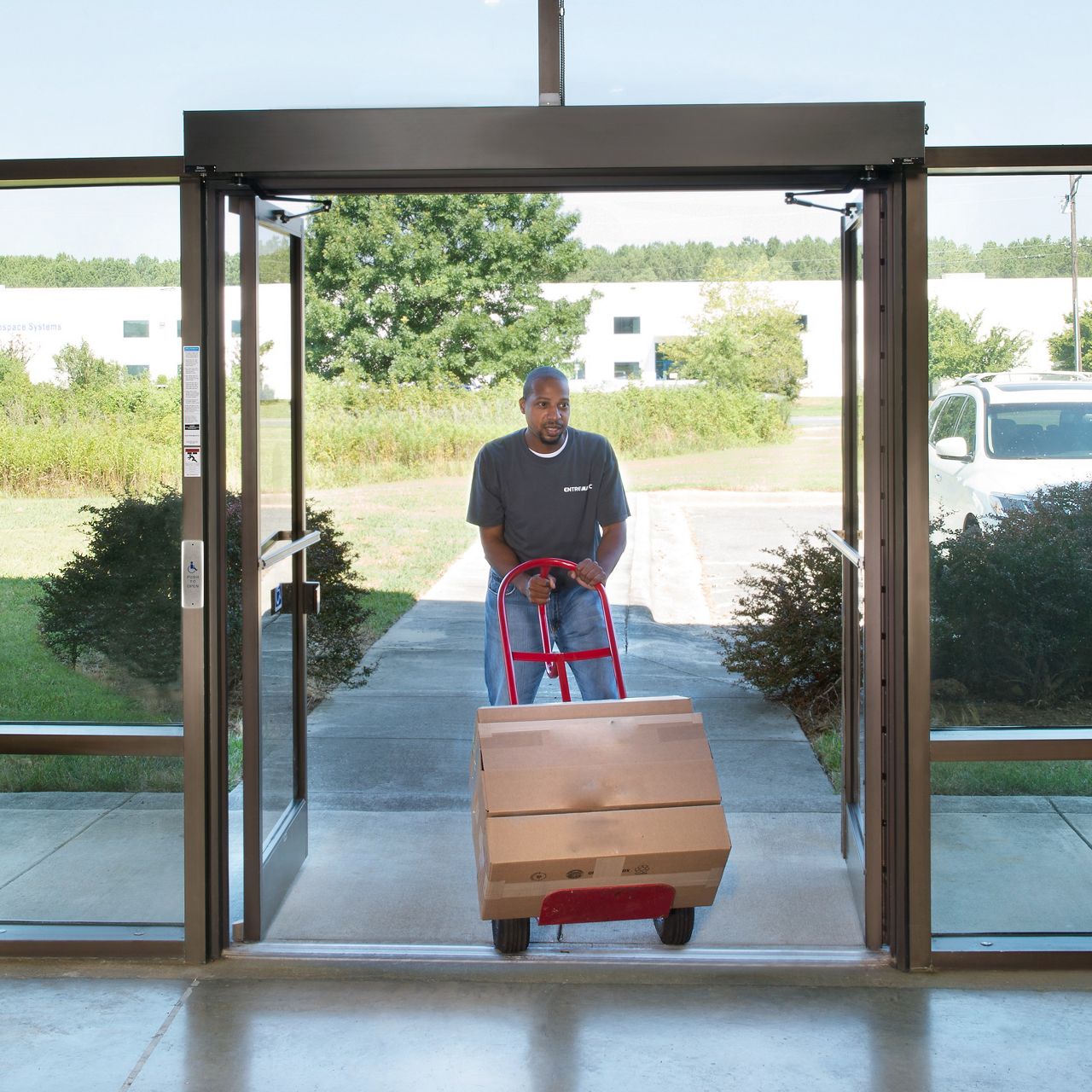

- A dual HA8-SP in dark bronze

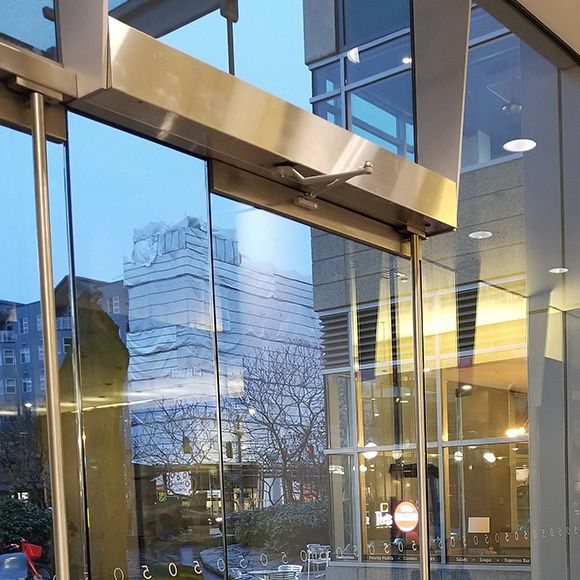

- A custom cladded HA8-SP

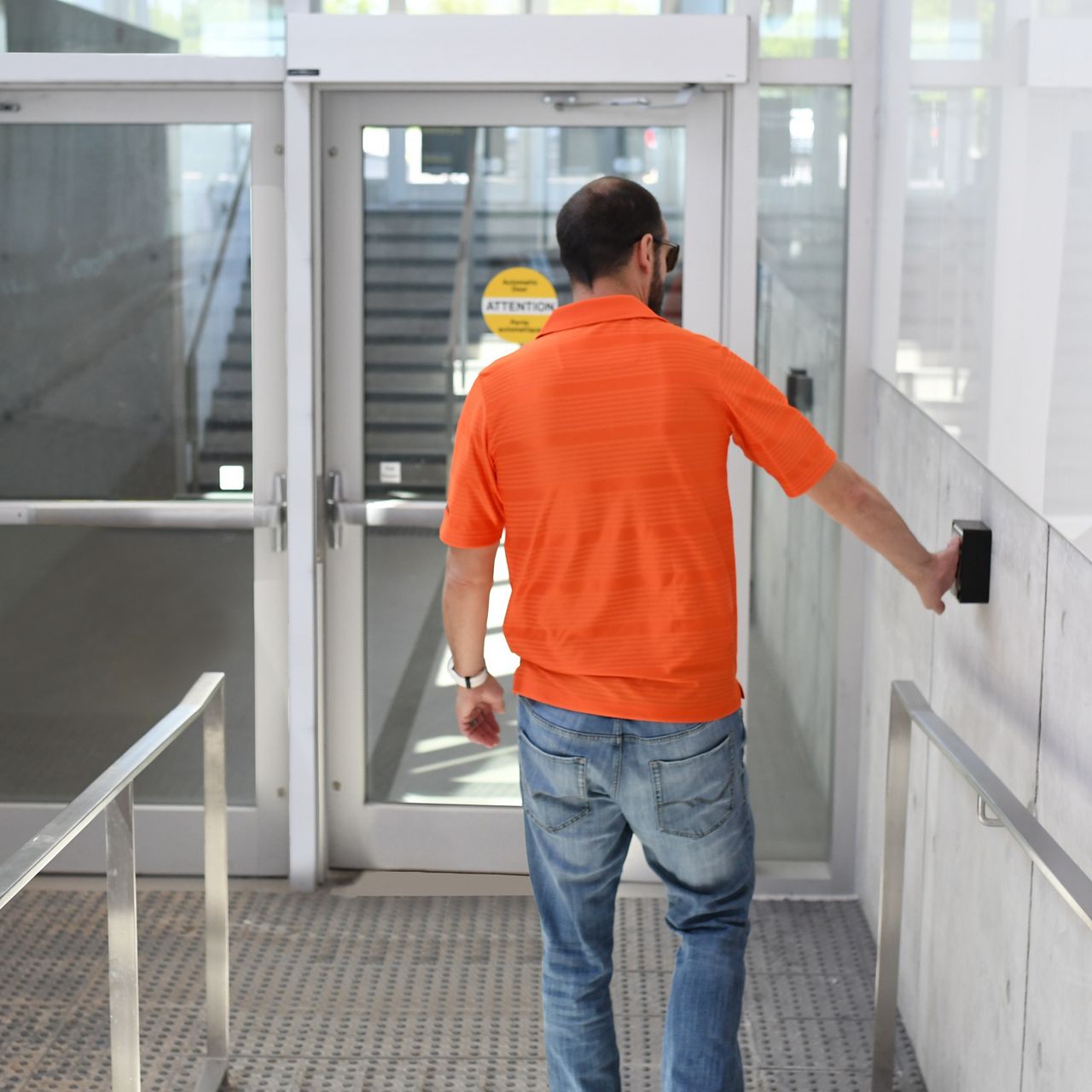

- HA8-SP in high traffic train station

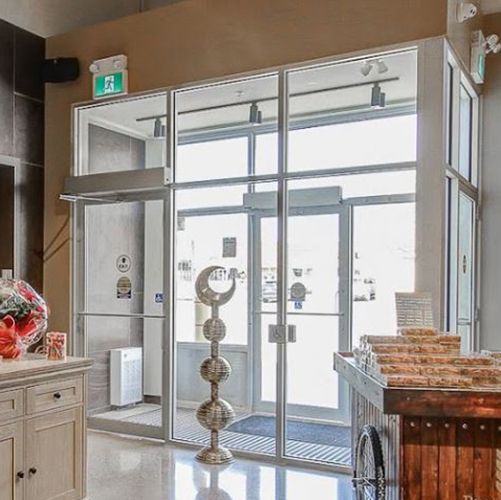

- HA8-SP for retail applications

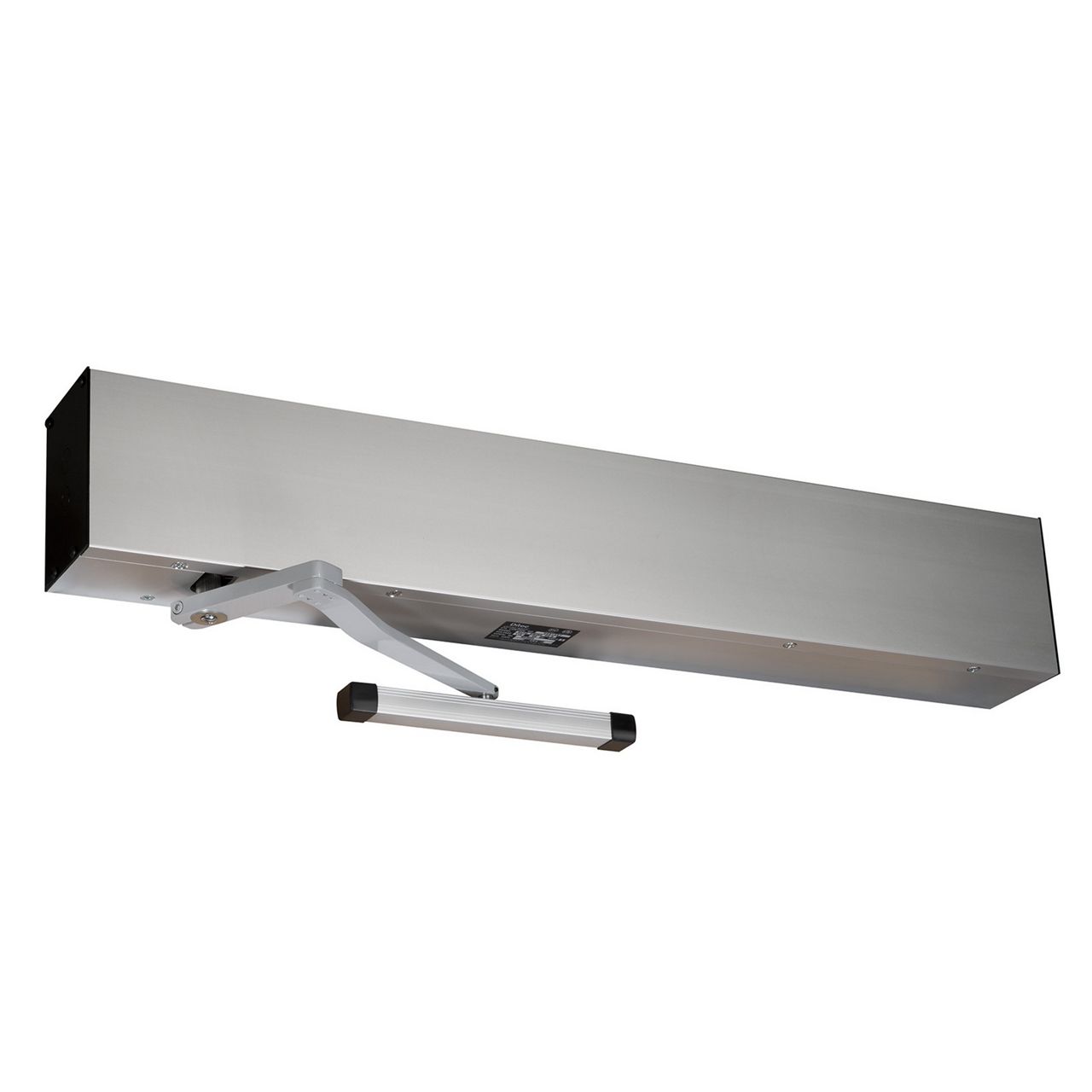

- HA8-SP in clear with a pull arm

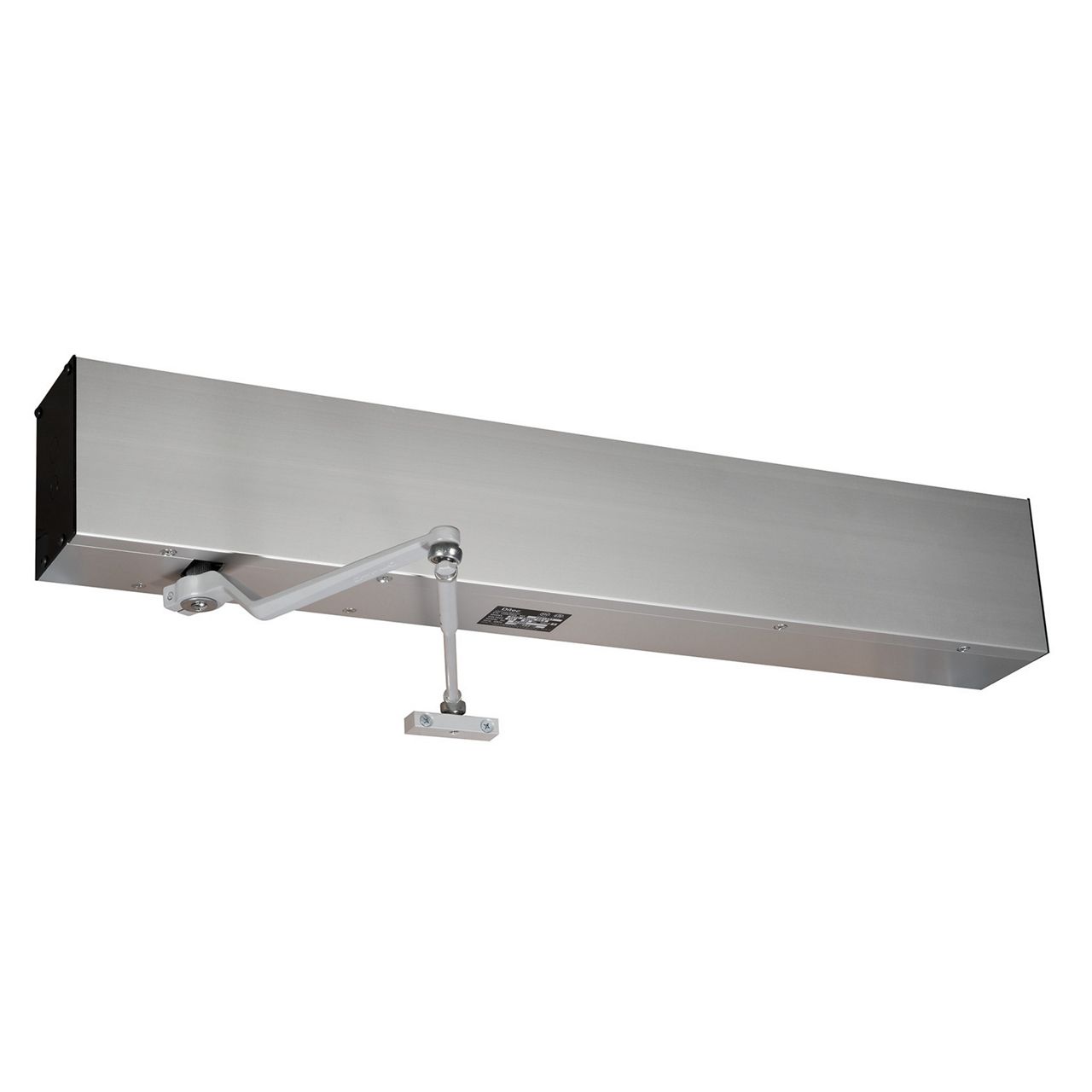

- HA8-SP in clear with a push arm

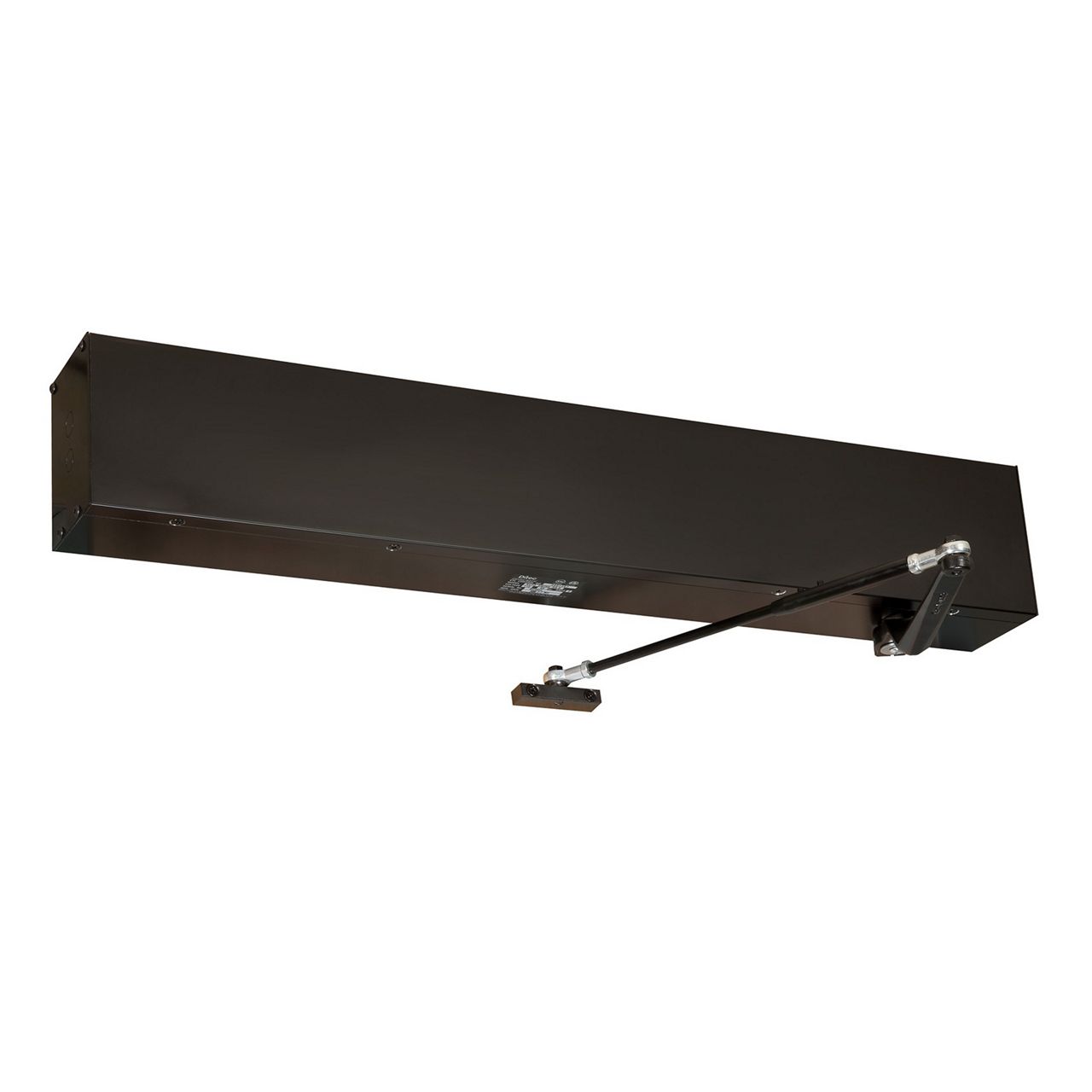

- HA8-SP in dark bronze with a push arm

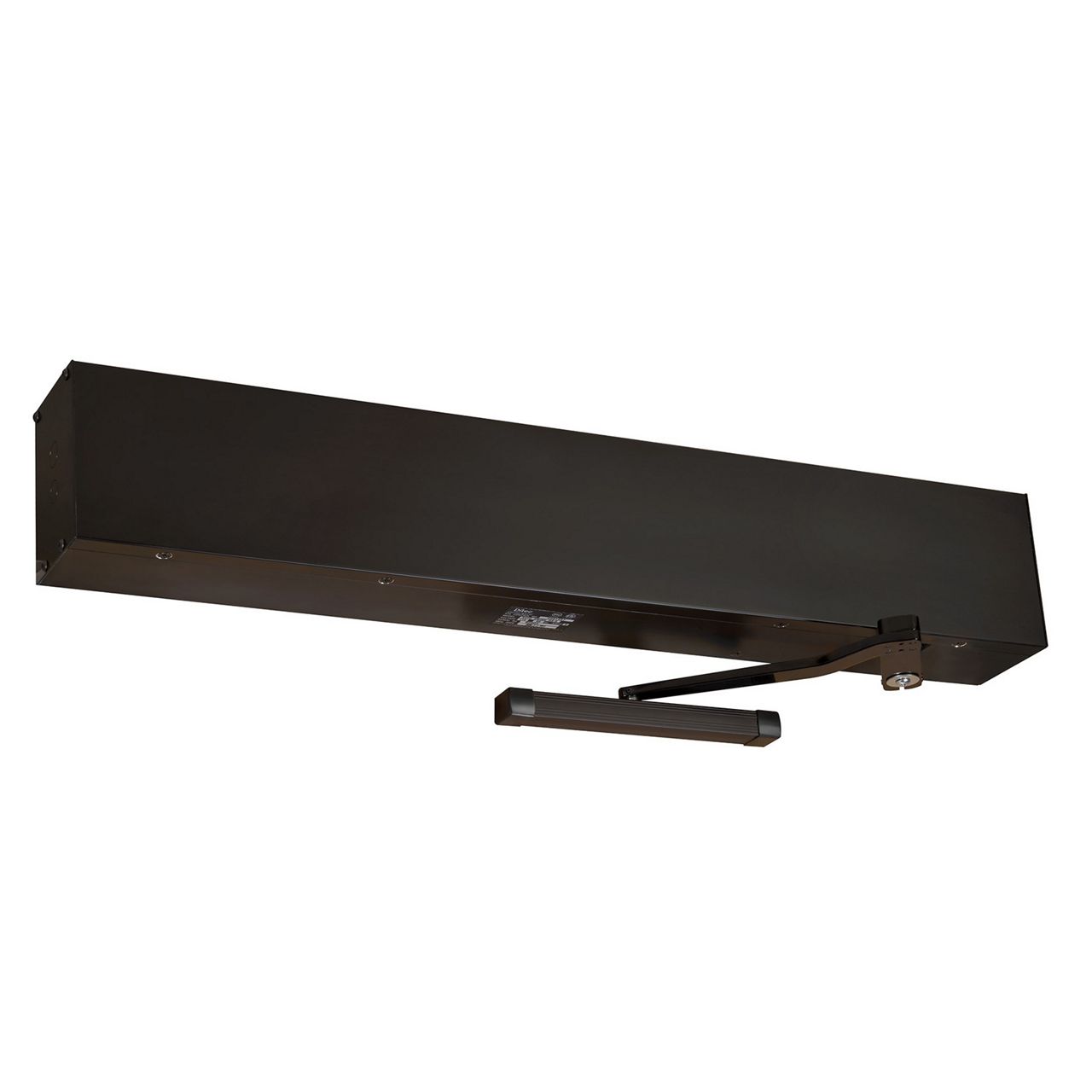

- HA8-SP in dark bronze with a pull arm
ADA
Low energy operators meet the requirement of the Americans with Disabilities Act (ADA). They allow for easy access for disabled individuals by using push plates or other activation devices.
Push or Pull
Can be used as push or pull.
Heavy Duty
Capable of handling high-traffic locations.
- Header Profile: 6 1/2" x 4 1/2"
- Motor: 1/8 HP
- Header Finish: clear or dark bronze extruded aluminum
- Push Reveal: 0" to 14"
- Pull Reveal: 0" to 4"
- Total Weight with 39" Header: 45 lbs
- Handed: Specify left/right, push or pull
Product Brochure
Drawings (pdf)
Drawings (dwg)
Wiring Requirements
Installation Manual
Replacement Parts
